Zeal Lithium 12V 150Ah LiFePO4

Specifications

• Nominal Voltage 12.8V
• Nominal Capacity (25o C, 0.33C) 150Ah
• Dimensions Length 483±3mm
• Width 170±3mm Height 241±3mm
• Total Height 241±3mm Approx.
• Weight 19.6kg

Characteristics

• Terminal type M8
• Max Charge Voltage 14.6V±0.2V
• Standby Voltage 13.8±0.2V
• Cut-off Voltage 10V
• Max. Discharge Current 150A
• Max Pulse Discharge Current (3 sec) 400A
• Max Charge Current 150A
• Recommended Charge Current < 75A
• Cycle Life (100% DoD) 1800+
• Operating Temp - Charge 0o C - 45ºC
• Operating Temp - Discharge -20ºC - 60ºC
• Short Circuit Release Yes
• Max. Series / Parallel Configuration 4S or 4P
• Cell Type Prismatic
• Cell Chemistry Lithium Iron Phosphate (LiFePO4)
• BMS Protection Yes
• Warranty 3 Years

Applications

• Deep-cycle
• 4x4 Vehicles
• Recreational Vehicles
• Caravan / Camping
• Fast Recharge Requirements
• Low Weight Applications
• Marine
• Golf Carts
• Personal Power
• Non-Starting

About Zeal Lithium Zeal lithium is an economical 12V Lithium Iron Phosphate (LiFePO4) solution by Sealed Performance Batteries (SPB) which provides the core performance and safety advantages of a modern lithium battery in a well-built design. Backed by SPB, a company with over 25 years of experience in the energy storage industry, and designed to the best possible specifications, you can be confident that Zeal lithium has had every detail thoroughly examined in delivering a high-value solution. Safe And Stable Zeal provides a high degree of safety by utilising light-weight aluminum encased LiFePO4 prismatic cells, which and among the safest and most stable lithium cells available. It is also supported by an integrated BMS that protects against overcharge/discharge, temperature and short circuit events for complete confidence when in operation. Core Lithium Advantages A perfect AGM replacement, Zeal comes complete with a 3 year warranty and all the features you would expect from a LiFePO4 product including fast recharge capabilities, low self-discharge rate, long runtime and more usable capacity for power when you need it most. Need a larger solution? Up to 4 batteries can also be connected in parallel or series configurations to meet the needs of more demanding systems.

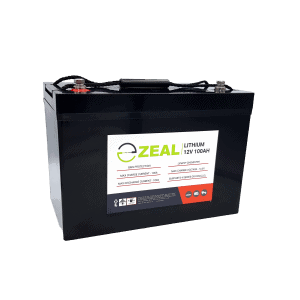

(PLEASE NOTE, PRODUCT PHOTO IS NOT OF 150AH BATTERY)
