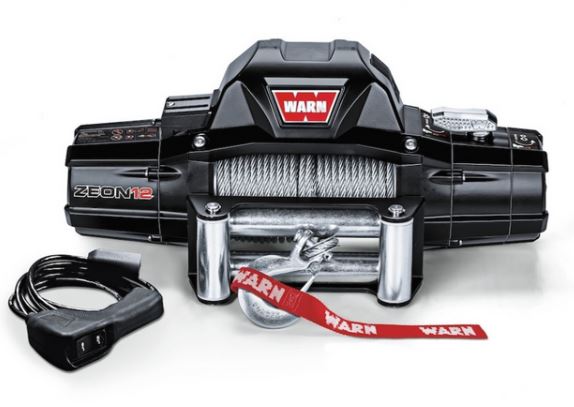

ZEON 12 WINCH (24V) - 90666
The Zeon 12 electric winch with 24-volts comes with a roller fairlead. Steel rope not included.
Please Note: This product requires a compatible bumper or mounting plate and must be mounted to a vehicle. Please visit our Mounting & Protection category for available options.
OVERVIEW:
The WARN ZEON 12 is the new face of winching. Bolt one on, and you'll be ready for anything. A top choice for those with heavily loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, and a hefty 12,000 Pounds single line pulling capacity. The ZEON 12 is a pulling machine you can rely on to rescue you or your buddies, from nearly anything.
- Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
- Gear Train And Motor Deliver Reliable Pulling Power That Is Fast, And Quieter Than Ever
- Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion, Improved Winch Sealing To Keep The Elements Out
- 12,000 Pounds (5443 Kilogram) Single Line Pulling Capacity
- Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
- Limited Lifetime Warranty
SPECIFICATIONS:
TYPE | Electric |
MOUNT TYPE | Vehicle Mounted |
RECOMMENDED USE | Vehicle Recovery |
VOLTAGE | 24 Volt |
ELECTRICAL CONTROL TYPE | Contactors |
MOTOR TYPE | Series Wound |
THERMAL SHUTOFF | No |
DRIVE GEAR TYPE | Planetary |
GEAR REDUCTION RATIO | 216:1 |
FREE SPOOLING | Yes |
BRAKE TYPE | Mechanical Cone |
LINE DIAMETER (IN) | 3/8 Inch |
LINE LENGTH (FT) | 80 Feet |
LINE MATERIAL | Steel |
FAIRLEAD TYPE | Roller |
CONFORMS TO J706 STANDARDS | No |
REMOTE TYPE | Handheld Remote Switch |
MOUNTING HOLE QUANTITY | 4 |
OPERATION TYPE | Automatic |
MOUNTING PATTERN LENGTH (IN) | 10 Inch |
MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
INCLUDES MOUNTING HARDWARE | No |
COLOR | Black |
MAX AMP DRAW/ LINE PULL | 252 Amp Draw/ 12000 Pound |
MAX LINE PULL/ LINE SPEED | 12000 Pound/ 5.7 Feet Per Minute |
