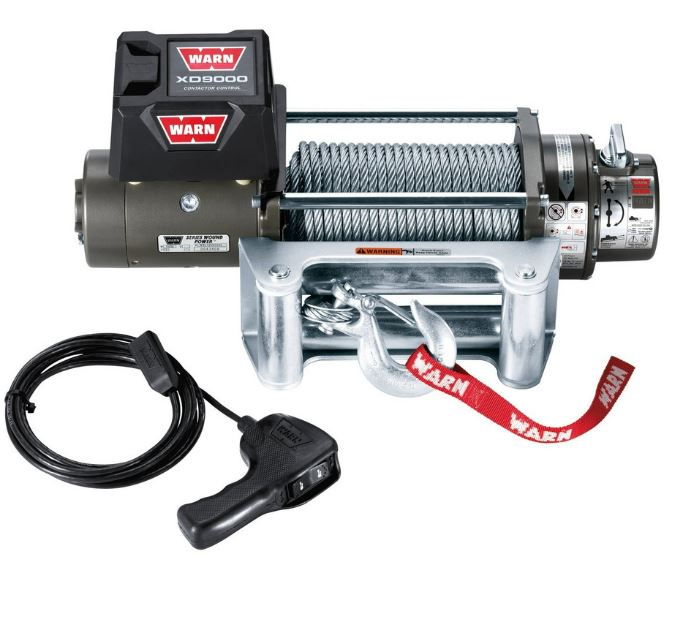

Warn XD9000 with Wire Rope
Warn XD9000 with Wire Rope
Regular price
$2,250.00 AUD
Regular price
$2,999.95 AUD
Sale price
$2,250.00 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
A long-time best seller, the compact, low-profile XD9 offers up a 9,000 lb. capacity, fast no-load retrieval speeds, and classic looks. Proven for years, these are among the most trusted winches in the Warn line-up.
Note: This Winch will require winch mount for proper installation.
Features:
A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100' of 5/16" wire rope.
- Low-profile design and separate control box allows for a wide range of mounting options
- Exclusive brake design provides superior control while winching
- Durable 3-stage planetary gear train for smooth, reliable, operation
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Chip-resistant, powder-coated finish
- Remote control with 12' (3.7m) lead.
- Durable 5/16" (8mm) diameter galvanized steel wire rope.
Specifications:
| TYPE | Electric |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Vehicle Recovery |
| VOLTAGE | 12 Volt |
| MOTOR HORSEPOWER | 4.6 Horsepower |
| ELECTRICAL CONTROL TYPE | Contactors |
| MOTOR TYPE | Series Wound |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 156:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Mechanical Cone |
| LINE DIAMETER (IN) | 5/16 Inch |
| LINE LENGTH (FT) | 100 Feet |
| LINE MATERIAL | Steel |
| FAIRLEAD TYPE | Roller |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | Handheld Remote Switch |
| MOUNTING HOLE QUANTITY | 4 |
| OPERATION TYPE | Automatic |
| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | No |
| COLOR | Gray |
| MAX LINE PULL/ LINE SPEED | 9000 Pound/ 3.9 Feet Per Minute |
| MAX AMP DRAW/ LINE PULL | 478 Amp Draw/ 9000 Pound |
