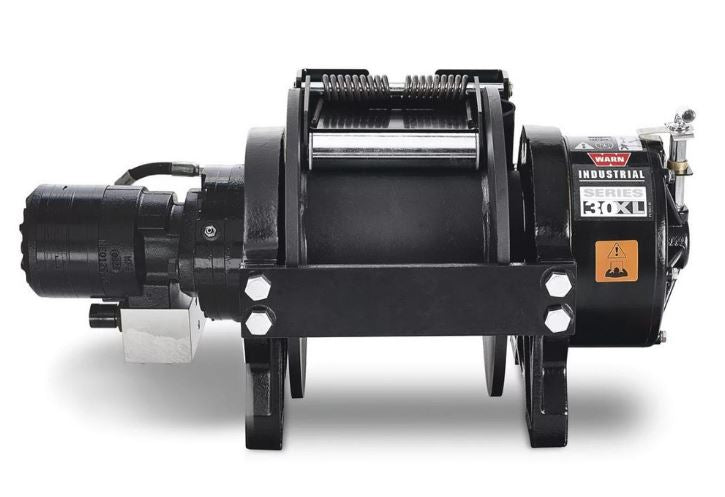

WARN Series 30XL 30,000lb Hydraulic Industrial Winch | 77900 | Standard drum and air clutch

WARN Series 30XL 30,000lb Hydraulic Industrial Winch | 77900 | Standard drum and air clutch

Regular price $12,299.95 AUD
Regular price Sale price $12,299.95 AUD
Sale Sold out
Shipping calculated at checkout.

For hydraulic winching applications, no product performs better than a Warn Industrial winch. Powerful hydraulic Motors allow for extended duty. Hardened steel, two-stage Planetary Gear Trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with world-wide quality and safety standards.

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

Features:

  • 12 Cubic Inch High Performance Motor With 30,000 Pounds Capacity, Great For Trailers, Roll Back Carriers, And Severe Duty Applications
  • Spring Applied Disc Brake Designed To Hold The Full Rated Load
  • Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
  • Meets SAE J706 And CE Specifications
  • Limited Lifetime Warranty on Mechanical Components, Limited 5 year Warranty on Electrical Components

Specifications:

TYPE Hydraulic
MOUNT TYPE Vehicle Mounted
RECOMMENDED USE Industrial
VOLTAGE Not Applicable
MOTOR HORSEPOWER Not Applicable
ELECTRICAL CONTROL TYPE Not Applicable
THERMAL SHUTOFF No
DRIVE GEAR TYPE Planetary
GEAR REDUCTION RATIO 36:1
FREE SPOOLING Yes
BRAKE TYPE Spring Applied Disc
LINE DIAMETER (IN) No Rope
LINE LENGTH (FT) No Rope
LINE MATERIAL No Rope
FAIRLEAD TYPE No Fairlead
CONFORMS TO J706 STANDARDS Yes
REMOTE TYPE No Remote
MOUNTING HOLE QUANTITY 8
OPERATION TYPE Automatic
MOUNTING PATTERN LENGTH (IN) 18 Inch
MOUNTING PATTERN WIDTH (IN) 7-1/2 Inch
INCLUDES MOUNTING HARDWARE No
COLOR Black
MAX LINE PULL/ LINE SPEED 30000 Pound/ 21.9 Feet Per Minute
