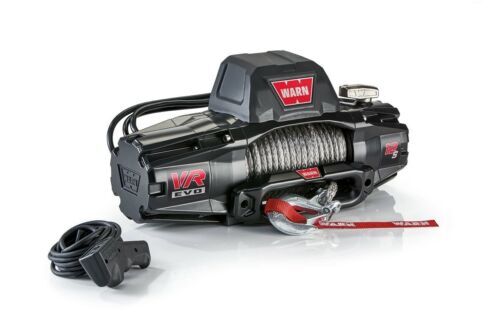

Warn EVO-12S with synthetic rope
Warn EVO-12S with synthetic rope
The EVO 12 and 12-S feature IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the EVO series of winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
-
A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
-
IP68-rated waterproof winch construction keeps the elements out
-
High-performance Albright contactor delivers maximum reliability
-
Control packs can be relocated for low-profile installations
-
Durable, one-piece cast-aluminum tie-plate for added strength and durability
-
Two-in-one remote with wired AND wireless options for ease of use and versatility
-
Limited lifetime warranty for mechanical parts and 7 years on the electrical
-
Designed, engineered, and tested by WARN engineers in the U.S.A.
INSTALLATION AVAILABLE, FEEL FREE TO CALL US ON 03 5918 4537 TO GET A QUOTE OR BOOK A TIME.
Specifications
Part number: EVO-12-S-103255 |
Rated line pull: 5443kg (12000 lbs.) |
Motor: 12V series wound |
Electrical controls: Albright Contactor |
Remote Control: 2 in 1 plug-in remote with wireless capability and 3.5M lead |
Geartrain: 3-Stage Planetary |
Gear ratio: 234:1 |
Clutch (freespooling): Rotating ring gear |
Brake: Spring brake |
Drum diameter/Length: 6.73cm/23cm (2.5″/ 9.0″) |
Shipping weight: 32.78 kg (72.27 lbs.) |
Net product weight: 24.98 kg (55.07 lbs.) |
Rope: 9.5mm x 27.4m (3/8″ x 90′) |
Fairlead: Die cast hawse |
Recommended Battery: 650 CCA minimum for winching |
Battery leads: 25m x 2M |
Finish: Powder coating over primer undercoating |
