Runva

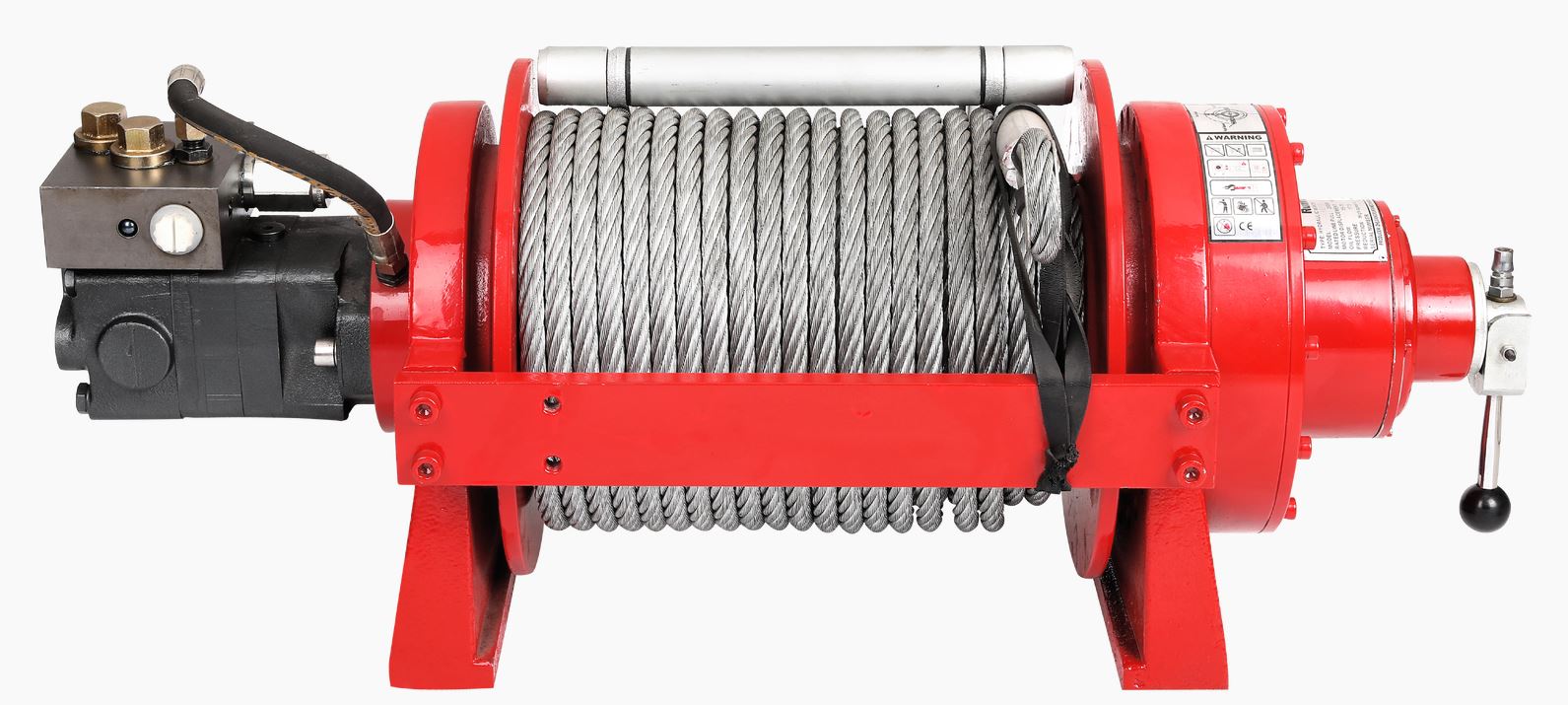

RUNVA HWP20000Y2P HYDRAULIC WINCH WITH STEEL CABLE

RUNVA HWP20000Y2P HYDRAULIC WINCH WITH STEEL CABLE

Regular price $3,950.00 AUD
Regular price Sale price $3,950.00 AUD
Sale Sold out
Shipping calculated at checkout.

The Runva HWP20000Y2P is our most powerful commercial grade hydraulic winch that can be used in a variety of industries and applications. This winch offers a massive 20,000lb of line pull. With 48M of 14MM steel cable on the drum, this winch is ideal for even the most demanding recoveries.

The HWP20000Y2P is a single speed winch with a dual mode clutch. The clutch can be operated manually or by air. The braking is automatic via the wet-type hydraulic disc brake. The gearbox is strong and efficient thanks to the Runva patented two stage planetary setup.

With full IP67 ingress protection, this winch can be used in the most extreme conditions. The HWP20000Y2P is perfect for tow trucks & recovery vehicles, expeditions vehicles like Unimog & Iveco Daily, log splitters, portable hydraulic machines, marine applications and MUCH more.

If you need a handheld or wireless remote to operate the winch, a full optional extra accessory kit can be purchased which includes a handheld remote (wireless optional), directional control valve (either 12V or 24V) and valve block.



RATED LINE PULL20,000LB (9,072KG)
MOTOR DISPLACEMENT100ML/R
OIL FLOW REQUIREMENTS25 – 75L/MIN
PRESSURE REQUIREMENTS17.5MPA
GEAR TRAINFULL STEEL 2 STAGE PLANETARY
GEAR RATIO39:1
CLUTCH TYPEMANUAL + AIR
CLUTCH HANDLE POSITIONSIDE OF WINCH
BRAKEAUTOMATIC LOAD HOLDING HYDRAULIC DISC
CABLE TYPESTEEL CABLE
CABLE SIZE14MM X 48M
DRUM SIZE138MM X 316MM
MOUNTING BOLT PATTERN431M X 64MM; 431MM X 192MM (8X M14 BOLTS)
OVERALL DIMENSIONS835MM X 390MM X 320MM
REMOTE CONTROLN/A
FINISHRED POWDER COAT
WARRANTYLIMITED 18 MONTH COMMERCIAL WARRANTY
SKU HWP20000Y2P
SHIPPING WEIGHT 163.00KG
SHIPPING WIDTH 0.530M
SHIPPING HEIGHT 0.530M
SHIPPING LENGTH 1.050M
