Runva

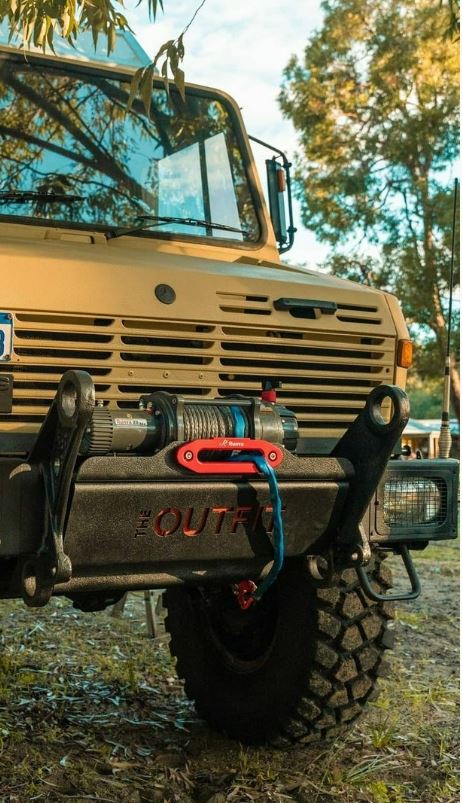

RUNVA EWB20000 PREMIUM WITH SYNTHETIC ROPE

RUNVA EWB20000 PREMIUM WITH SYNTHETIC ROPE

Regular price $2,250.00 AUD
Regular price Sale price $2,250.00 AUD
Sale Sold out
Shipping calculated at checkout.
Voltage

The Runva EWB20000 Premium is our extreme duty 20,000lb recovery winch. Designed for recreational and commercial applications. The gearbox is a three stage planetary setup with super tough 370:1 gear ratio to handle even the toughest recoveries. With a fast no load line speed of 8.5M/Min*, this winch will get the job done in no time.

This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWB20000 Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control. An optional extra cable tensioner can also be supplied for commercial applications.

If you are looking for a heavy duty winch, for either recreational or commercial applications, the EWB20000 Premium is the winch for you. This model is perfect for your expedition Unimog, Iveco Daily, Tow Truck, marine or military applications. (+ many other applications)



  • 20,000LB LINE PULL CAPACITY
  • IP67 INGRESS PROTECTED
  • RATCHET STYLE BRAKE IN GEARBOX
  • EXTREME DUTY – SUITABLE FOR COMMERCIAL APPLICATIONS
  • AVAILABLE IN 12V AND 24V
  • STEEL CABLE OPTION AVAILABLE
  • AIR FREESPOOL CLUTCH AVAILABLE
RATED LINE PULL20,000LB (9,072KG)
MOTOR(12V) 5.5KW/7.4HP; (24V) 6.1KW/8.2HP
GEAR TRAINFULL STEEL 3 STAGE PLANETARY
GEAR RATIO370:1
CLUTCH TYPESTAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED
BRAKEAUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPESYNTHETIC ROPE
CABLE SIZE12MM X 25M
DRUM SIZE88MM X 217MM
MOUNTING BOLT PATTERN254MM X 114.3MM; 254MM X 165.1MM
(8X M12 BOLTS)
OVERALL DIMENSIONS636MM X 214MM X 252MM
REMOTE CONTROLHEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS2X 1.8M HEAVY DUTY LEADS
FINISHGREY POWDER COAT
WARRANTYLIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY (18 MONTH COMMERCIAL USE WARRANTY)
