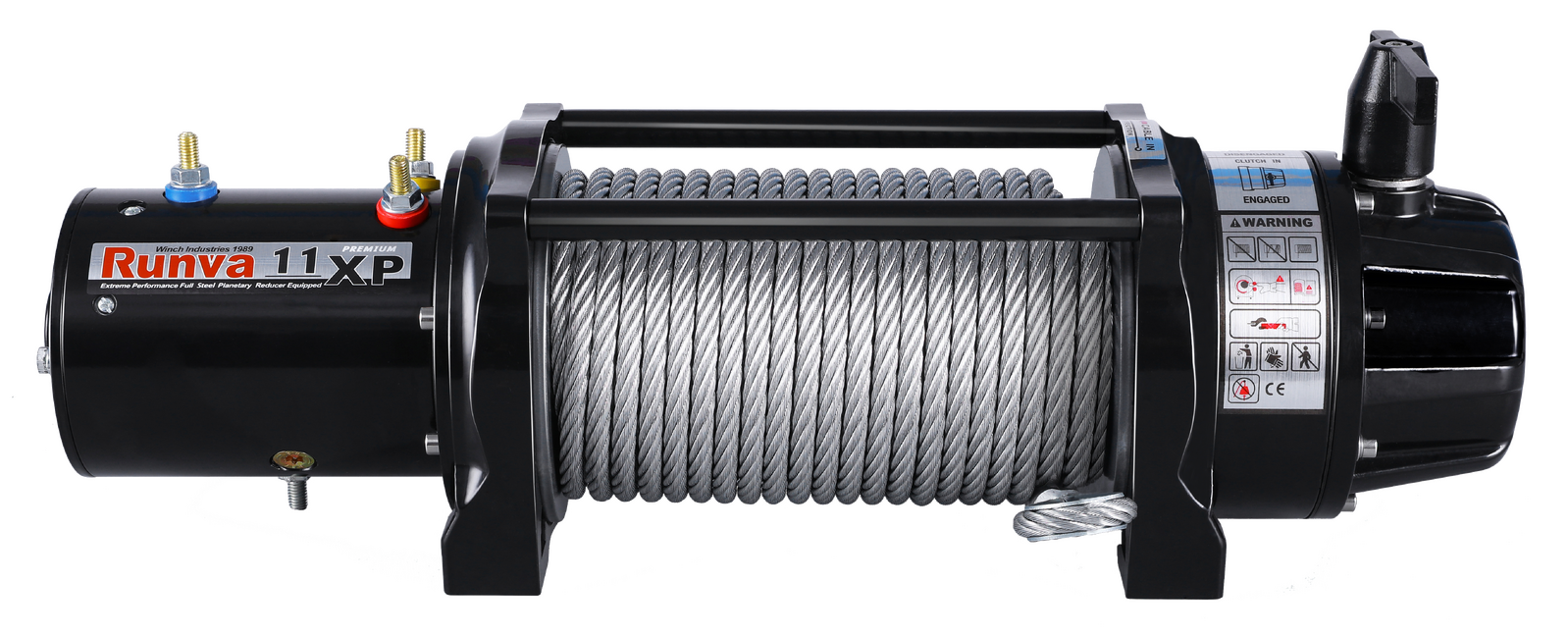

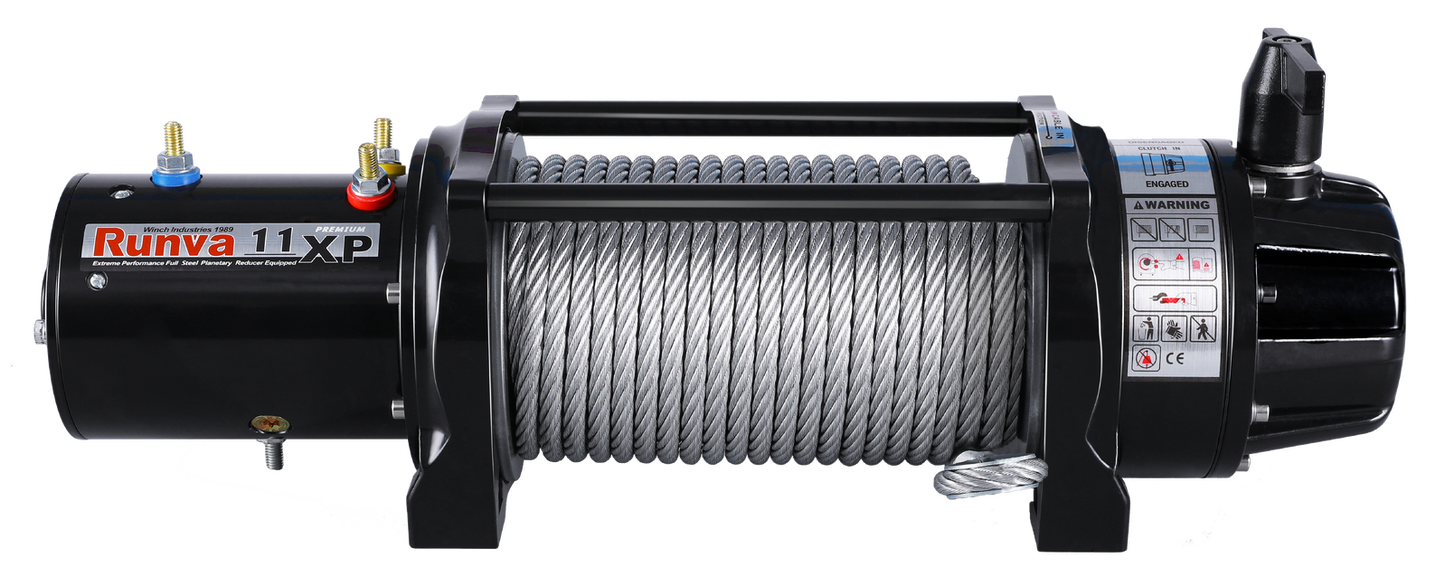

Runva 11XP Premium 24V with wire rope

THE WINCH THAT HAS IT ALL. The Runva 11XP Premium really does have it all. Perfect for just about any 4X4 on the market today - small to large. Featuring a massive 11,000lb of line pull from the powerful and reliable 6.7HP motor. The gearbox is a three stage planetary setup with tough 228:1 gear ratio to handle even the toughest recoveries. Whether you are driving a Hilux, Ranger, Landcruiser, or anything in between, this winch will get you out of trouble!

If you have seen the insane winching they do with the 11XP Premium in order to get out of the tracks they tackle, you know you are buying a quality winch that you can be confident in owning and using. After all of the winching they have done over the past couple of years, including pulling 2 dead vehicles tied together up a track, they have not had a single Runva fail on them.

This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

The clutch is easily engaged/disengaged via the Rotary Clutch system. The 11XP Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control.

INSTALLATION AVAILABLE, FEEL FREE TO CALL US ON 03 5918 4537 TO GET A QUOTE OR BOOK A TIME.

RATED LINE PULL11,000LB (4,990KG)

MOTOR (24V)  6.0KW/8.2HP

GEAR TRAINFULL STEEL 3 STAGE PLANETARY

GEAR RATIO228:1

CLUTCH TYPESTAINLESS STEEL ROTARY CLUTCH

CLUTCH HANDLE POSITIONGEARBOX CAN BE ROTATED

BRAKEAUTOMATIC RATCHET LOAD HOLDING IN GEARBOX

CABLE TYPEAIRCRAFT GRADE STEEL CABLE

CABLE SIZE9.2MM X 26.5M

DRUM SIZE63MM X 217MM

MOUNTING BOLT PATTERN254MM X 114.3MM

OVERALL DIMENSIONS574MM X 160MM X 200MM

REMOTE CONTROLHEAVY DUTY HANDHELD + WIRELESS

BATTERY LEADS2X 1.8M HEAVY DUTY LEADS

FINISHBLACK POWDER COAT

WARRANTYLIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY

***PLEASE NOTE, THESE WINCHES SUIT 24 VOLT SETUPS ONLY***
