Kamo Oko Vidi M4022 Single Motor Twin Speed Winch

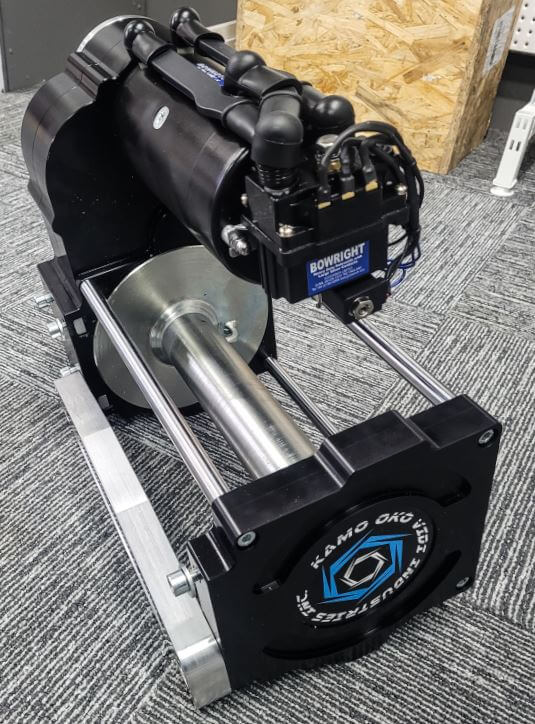

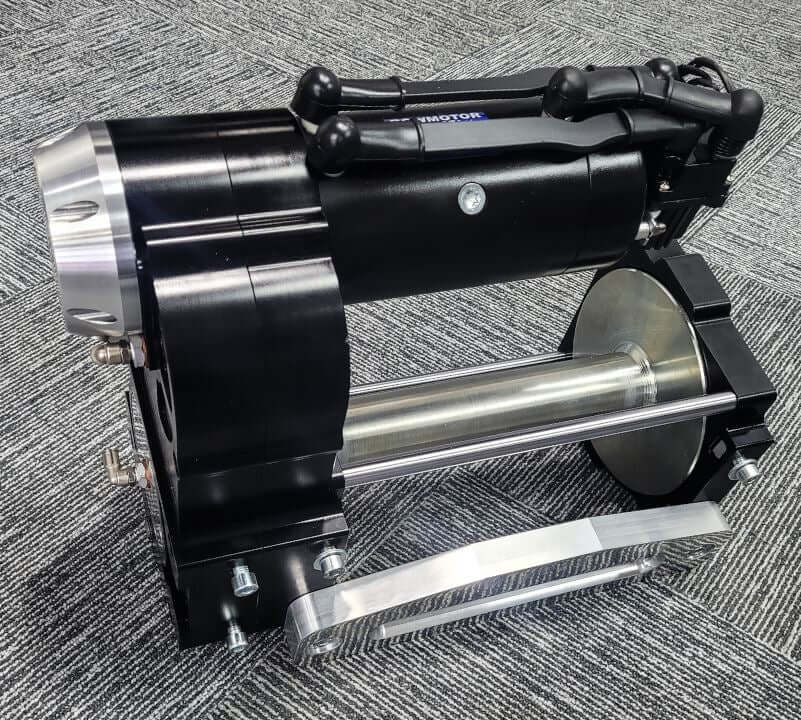

Introducing the Kamo Oko Vidi Industries M4022

Single Motor | Twin-Speed | Competition-Grade Winch

Experience performance without compromise with the M4022 from Kamo Oko Vidi Industries—the original and best twin-speed, single-motor competition winch.

Proudly designed and engineered in Croatia, the M4022 is built for serious off-road competitors and demanding recovery situations. With an impressive 9,000 lb (approx. 4,082 kg) pulling capacity and dual gear ratios, it offers both brute force and high-speed efficiency at the flick of a switch.

⚙️ Twin-Speed Performance, Precision Control

Switch between two optimized gear ratios effortlessly:

• 1st Gear (133:1) – Delivers exceptional torque and control, ideal for technical recoveries and delicate vehicle extractions. Approximately 17% faster than standard high-mount winches.

• 2nd Gear (56:1) – Offers high-speed line retrieval, up to 50% faster than standard high-mounts—perfect for competition scenarios and social wheeling.

Switching between gears is controlled via a dedicated rocker switch. Note: Gear changes must be made when the winch is not under load.

📊 Technical Specifications

Performance

• Pulling Capacity: 9,000 lbs (4,082 kg)

• Line Speeds:

  • 1st Gear: 8 m/min (1st rope layer) to 23 m/min (6 layers)

  • 2nd Gear: 19 m/min (1st layer) to 55 m/min (6 layers)

Motor & Electrical

• Motor: Bow 2 PLUS 12V 8HP electric motor (6,000 RPM)

• Solenoid: Bowright 12V

• Power Distribution: Integrated busbar power bars

• Cables: 2 x 2m 95mm² power and earth cables

Air-Operated Systems

• Freespool: +76mm air-actuated freespool for effortless rope payout

• Braking: Air-operated brake system ensures zero run-on for fast, controlled stops

• Gear Shift: Pneumatic two-speed selector (electrically actuated via solenoids)

📐 Dimensions

• Mounting: 6-bolt system (4 main housing, 2 end support)

• Mounting Footprint: 330mm x 100mm (+60mm for outer gearbox bolts)

• Overall Size:

  • Height: 395mm

  • Width: 493mm (end support to air brake cover)

  • Depth: 220mm

• Weight:

  • Winch (dry): 45 kg

  • Shipping weight: 75 kg

🎁 Included Accessories

• Synthetic Rope: 50m x 11mm WolfLine (11,500 kg breaking strain)

• Hook: 5.3T 13mm sling hook with safety latch

• Switches:

  • Custom KOV 1st/2nd gear rocker switch

  • Air freespool rocker switch

• Air System:

  • 2 x 3-port electric air solenoids

  • 8m of 6mm airline

  • Breather kit

✅ Complete, Ready-to-Install Package

The M4022 is the only competition winch on the market offered as a fully equipped, ready-to-go solution. No guesswork, no missing parts—just proven performance out of the box.

🔧 Installation Available

We offer professional installation services—contact us at (03) 5918 4537 for a quote or to book your appointment.

📍 Visit us in-store or call today to see the M4022 in action.
This is not just a winch—it’s a competitive edge.
