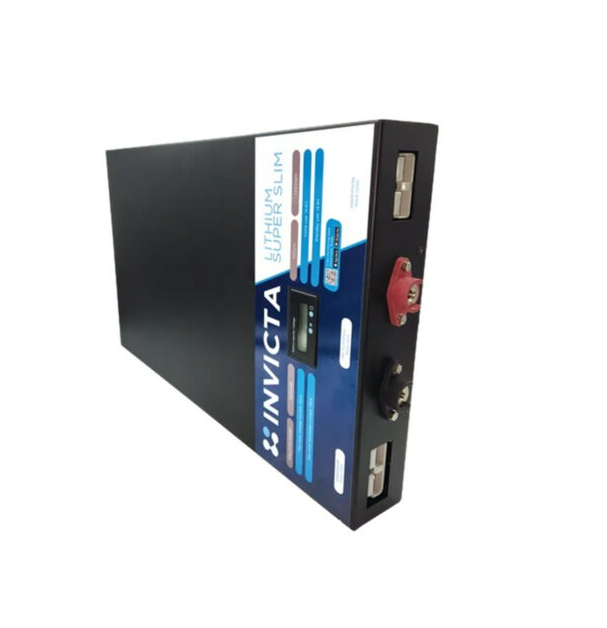

Invicta SNLSS12V100BT Super Slim Lithium

About Invicta Lithium
The Invicta Super Slim 12V range has been specifically designed for
fitment in to applications where usable space is extremely limited.
Utilising LiFePO4 cell technology, this allows the cells to be tighly
packed in to a modular design for ease of fitment. The range also
utilises the safe and efficient benefits of Lithium Iron Phosphate
(LiFePO4) technology and is ideally suited to deep cycle longer run
time applications.
Features & Benefits
• Large number of cycles >2000 (100% DoD)
Up to 8 times cycle life of SLA lowering your total cost of
ownership
• Safe and stable chemistry & Integrated BMS
The use of LiFePO4 along with the integrated BMS ensures
protection against over charge / discharge, temperature and
short circuit providing the highest degree of safety
• Modular construction allows for tighter cell configuration and
also enables up to four batteries to be put in parallel.
• High energy density (less than half of the weight of SLA)
Lowering total weight of application
• Fast recharge
Battery is charged and ready to be used sooner
• Flat Discharge Curve
Longer run time & more efficient use of capacity
• Extremely low self-discharge rate
Can sit unused for longer periods of time

Nominal Voltage 12.8v
Nominal Capacity (250C, 0.33C) 100Ah
Terminal 1 Anderson 175A
Terminal 2 Anderson 120A
Terminal 3 M8
Length (mm) 523 ± 2mm
Width (mm) 57.4 ± 2mm
Height (mm) 336 ± 2mm
Weight 15.0kg
Max Charge Voltage 14.5 ± 0.1V
Standby 13.8 ± 0.1V
Cut off Voltage 10.5V
Max. Discharge Current 150A
Max. Pulse Discharge Current (5 Sec) 320A
Max. Charge Current 100A
Recommended Current Charge < 50A
Cycle Life (100% DoD) > 2000
Operating Temp - Charge 0 - 450C
Operating Temp - Discharge -20 - 600C
Short Circuit Release Load Release
Max. Parallel / Series Configuration 4P / 0S
Bluetooth Yes
