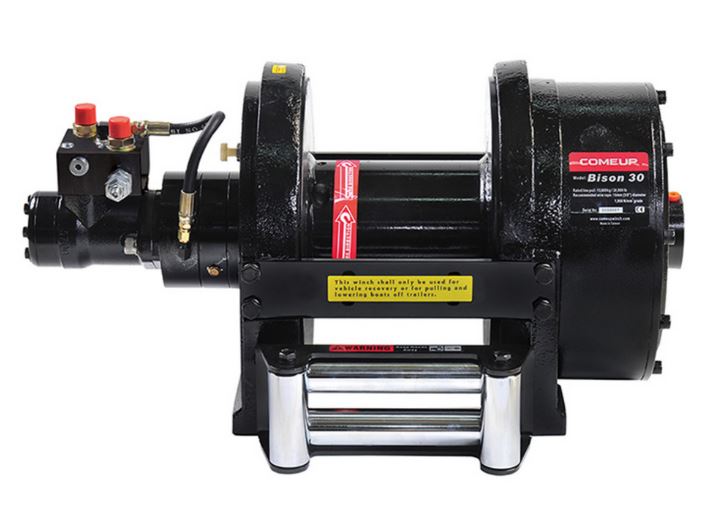

COMEUP Bison 30 - 30,000 lb / 13.6 Tonnes Hydraulic Recovery Winch

COMEUP Bison 30 - 30,000 lb / 13.6 Tonnes Hydraulic Recovery Winch

Regular price $10,972.50 AUD
Regular price Sale price $10,972.50 AUD
Sale Sold out
Shipping calculated at checkout.

Bison 30 | 13.6 Tonnes Hydraulic Recovery Winch

  • Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
  • 155.7 cm3/rev highly efficient and constant operating torque motor with 13,600 kg / 30,000 lb capacity
  • Hardened 2 stage planetary gear train with 41:1 gear ratio provides faster line speed
  • Built-in air clutch for rapid wire rope payout
  • The Multi-Disc Brake (MDB) patented for holding full load
  • Great for severe duty trailers, roll-back carriers, and commercial recovery application
  • Roller fairlead, cable tensioner and two ways counterbalance valve supplied
  • Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC.

Specifications:

  • Part number: PN 683030 (Std. drum)
  • Rated line pull: 13,600 kg / 30,000 lb (SAE J706 rating)
  • Line speed (at 1st layer of rope) : 5 mpm at 60 l/min (16 fpm at 15.9 g/min)
  • Operation pressure: 175 bar / 2,540 psi
  • Max oil flow: 60 l/min (15.9 g/min)
  • Hydraulic motor: 155.7 cm3/rev (9.5 in3/rev)
  • Gear ratio: 2-stage planetary gear 41:1
  • Winch construction: Cast housings with steel drum
  • Clutch (Freespooling): Output shaft disengaged
  • Brake: Multi-Disc Brake (MDB) patented and counterbalance valve supplied
  • Rotation of winch: Wire rope shall be under-wound orientation only

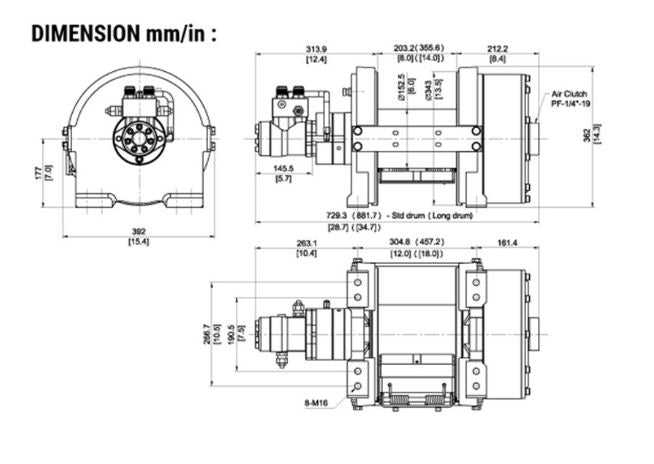

  • Drum barrel diameter: 152.5 mm (6")
  • Drum flange diameter: 343 mm (13.5”)
  • Distance between flanges: 203 mm (8") - Std. drum
  • Mounting bolt pattern: 190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) - Std. drum
  • Wire rope recommended: 16 mm x 43 m ( 5/8” x 141’) - Std. drum
    1,960 N/mm(EIPS) grade with a minimum breaking strength of 179 kN (40,167 lbf) required for SAE J706 rating

Performance:

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.


Warranty

  • Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Accessories:

  • Roller fairlead
  • Counterbalance valve
  • Cable tensioner

Package:

  • Winch weight : 175 kg / 386 lb - Std. drum
  • Gross weight : 198 kg / 437 lb - Std. drum
  • Box dimension : 900 x 510 x 530 mm (35.4” x 20.1” x 20.9”) - Std. drum
