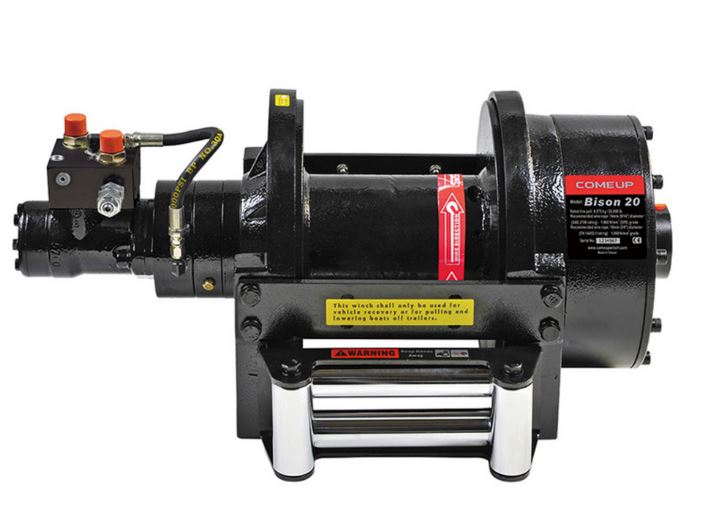

COMEUP Bison 20 - 20,000 lb / 9.07 Tonnes Hydraulic Recovery Winch

COMEUP Bison 20 - 20,000 lb / 9.07 Tonnes Hydraulic Recovery Winch

Regular price $8,662.50 AUD
Regular price Sale price $8,662.50 AUD
Sale Sold out
Shipping calculated at checkout.

Bison 20 | 9.07 Tonnes Hydraulic Recovery Winch

  • Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
  • 155.7 cm3/rev highly efficient and constant operating torque motor with 9,070 kg / 20,000 lb capacity
  • Hardened 2 stage planetary gear train with 30:1 gear ratio provides faster line speed
  • Built-in air clutch for rapid wire rope pay-out
  • The Multi-Disc Brake (MDB) patented for holding full load
  • Great for severe duty trailers, roll-back carriers, and commercial recovery application
  • Roller fairlead, cable tensioner and two ways counterbalance valve supplied
  • Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC and EN 14492-1 Power Driven Winches.

Specifications:

  • Part number: PN 682030 (Std. drum)
  • Rated line pull: 9,070 kg / 20,000 lb (SAE J706 & EN 14492-1 rating)
  • Line speed (at 1st layer of rope) : 7.1 mpm at 60 l/min (23 fpm at 15.9 g/min)
  • Operation pressure: 175 bar / 2,540 psi
  • Max oil flow: 60 l/min (15.9 g/min)
  • Hydraulic motor: 155.7 cm3/rev (9.5 in3/rev)
  • Gear ratio: 2-stage planetary gear 30:1
  • Winch construction: Cast housings with steel drum
  • Clutch (Free spooling): Output shaft disengaged
  • Brake: Multi-Disc Brake (MDB) patented and counterbalance valve supplied
  • Rotation of winch: Wire rope shall be under-wound orientation only

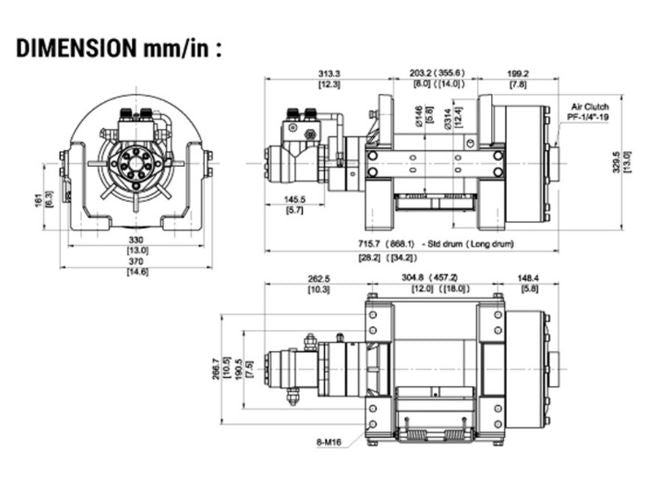

  • Drum barrel diameter: 146 mm (5.8")
  • Drum flange diameter: 314 mm (12.4”)
  • Distance between flanges: 203 mm (8") - Std. drum
  • Mounting bolt pattern: 190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) - Std. drum
  • Wire rope recommended:
    * 16 mm x 30 m for Std. drum, 1,960 N/mm2 grade with a minimum breaking strength of 179 kN required for EN 14492-1 rating.
    * 9/16” x 141’ for Std. drum, EIPS grade with a minimum breaking strength of 30,472 lbf required for SAE J706 rating.

    Compliant with EN 14492-1 requirements for recovery winches:

    • The working coefficient for the first rope layer on the drum shall be at least 2.
    • The D/d ratio to the centre of the rope shall be at least 10 for the drum.
    • Drum freeboard shall be at least 1.5 x rope diameter.



Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.


Warranty

  • Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Accessories:

  • Roller fairlead
  • Counterbalance valve
  • Cable tensioner

Package:

  • Winch weight: 135 kg / 298 lb - Std. drum
  • Gross weight: 165 kg / 364 lb - Std drum
  • Box dimension, (L x D x H) :  870 x 500 x 510 mm (34.3" x 19.7" x 20.1")  - Std. drum
