Carbon Offroad

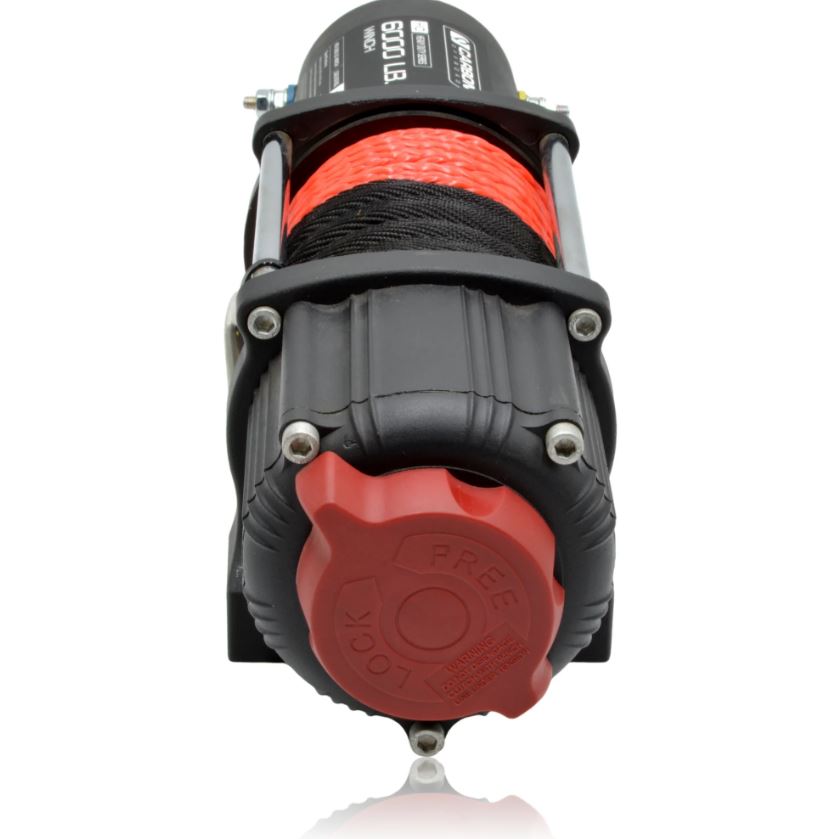

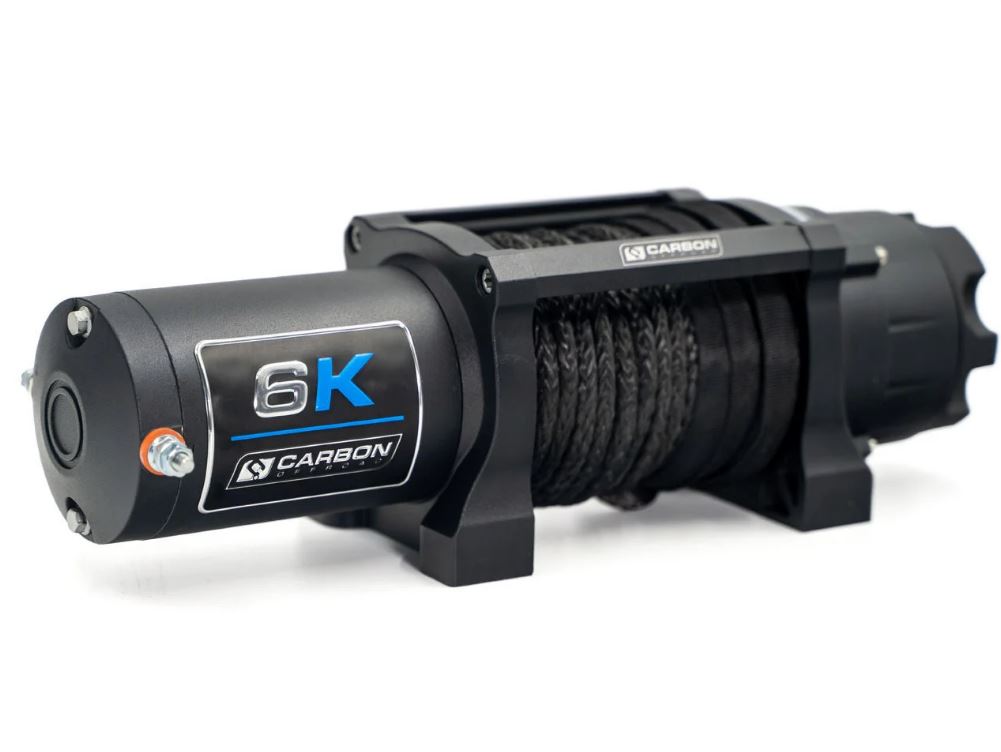

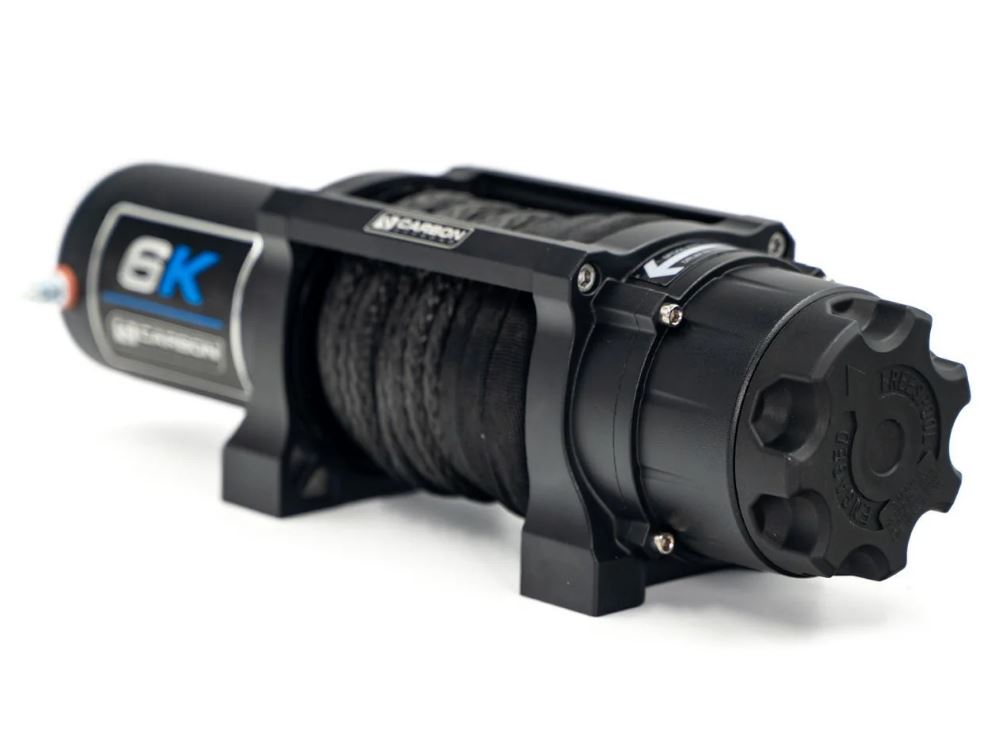

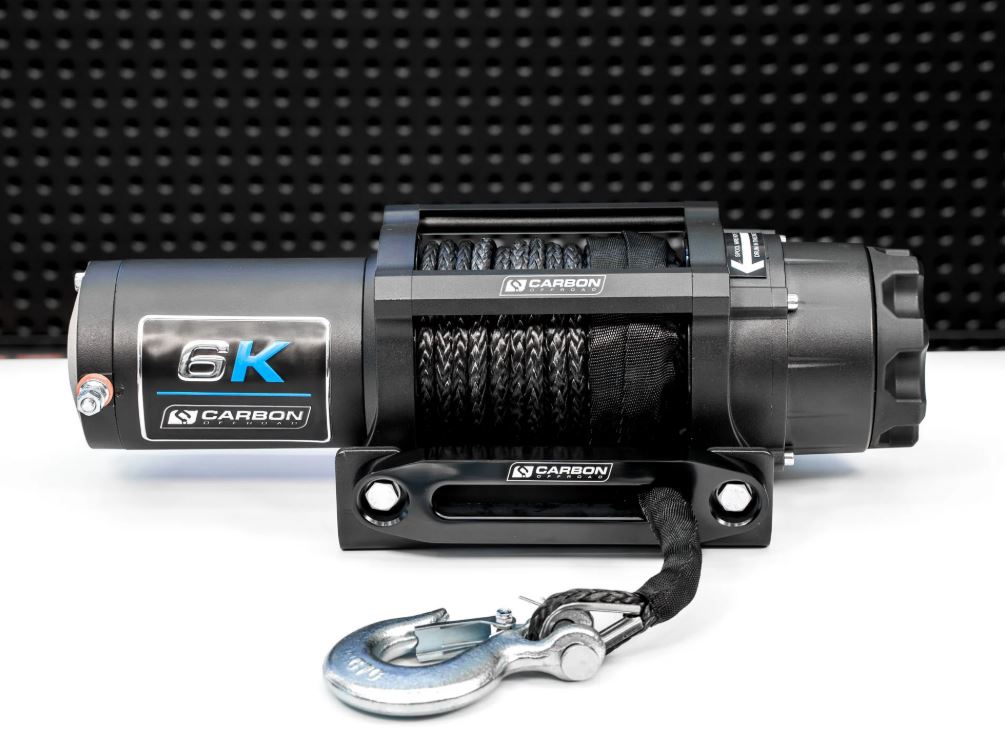

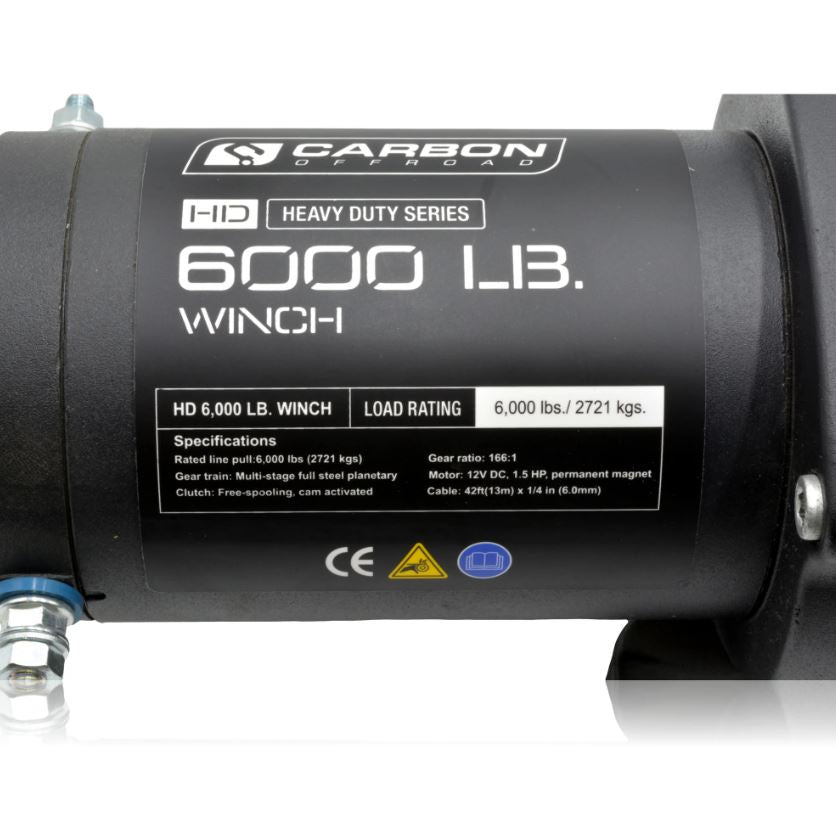

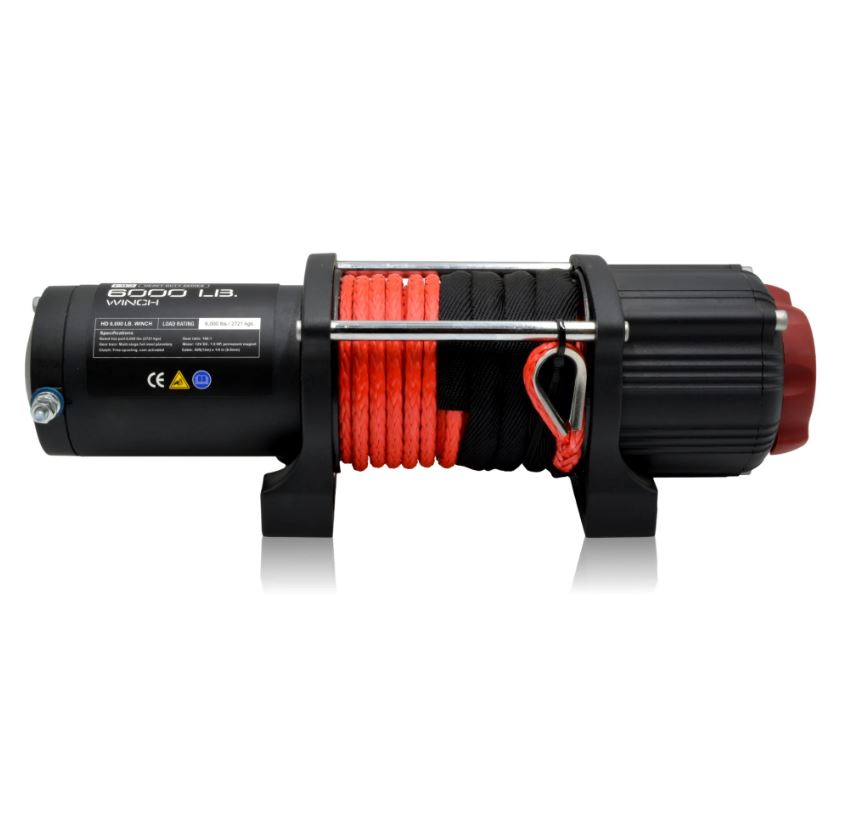

Carbon Offroad Tank 6000lb ATV UTV Small 4x4 Winch Kit IP66 12V

Carbon Offroad Tank 6000lb ATV UTV Small 4x4 Winch Kit IP66 12V

Regular price $569.00 AUD
Regular price Sale price $569.00 AUD
Sale Sold out
Shipping calculated at checkout.

Carbon Offroad Tank 6000 lb Winch
Compact Power for Small 4WDs, Caravans, Trailers, and Boats

The Carbon Offroad Tank 6000 lb Capacity Winch delivers powerful performance in a compact design — ideal for small 4WDs, caravans, trailers, and boats.

Featuring an integrated mounting plate, installation is quick and straightforward, whether fitting it to an existing trailer pedestal or a compact bull bar. The winch comes equipped with both wireless and wired remote controls, offering maximum flexibility and convenience straight out of the box.

This versatile winch is perfect for:

  • Small car or equipment trailers

  • Loading heavy gear into vans

  • Launching boats or tinnies

  • Opening livestock trailer gates

  • Recovering lightweight 4WDs such as the Suzuki Jimny

Rugged, reliable, and easy to install, the Carbon Offroad Tank 6000 is the ultimate compact all-rounder — designed to make work easier and recovery faster wherever you need it.



Features and Benefits

  • Sealed motor and gear train allows for flawless operations in extreme conditions
  • Permanent magnet motor provides heavy duty torque for increased pulling power
  • Cam action disengages gears for near silent free-spooling
  • Mechanical and dynamic brake offers increased control and prevents rollback



  • Part number: CW-XD6
  • Rated line pull: 6000 lbs, (2725kg) single-line
  • Motor: 12V DC 2.5 HP permanent magnet (Available in 24V)
  • Remote Control: Handlebar Mini-Rocker
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 147:1
  • Clutch: Roller disc full load automatic
  • Brake: Automatic brake in the motor bracket
  • Aluminium hawse
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • IP Rating: IP66 for winch and solenoid (excludes remote control and switch)
  • Synthetic Rope: 16m x 6.5mm diameter
  • Drum Diameter/Length: 51mm x 122mm
  • Mounting Bolt Pattern: 164mm x 76mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 385 x 115 x 119mm
  • Packing Dimensions (L x W x H): 530 x 170 x 230mm
  • Winch weight with synthetic rope attached: 8.3kg

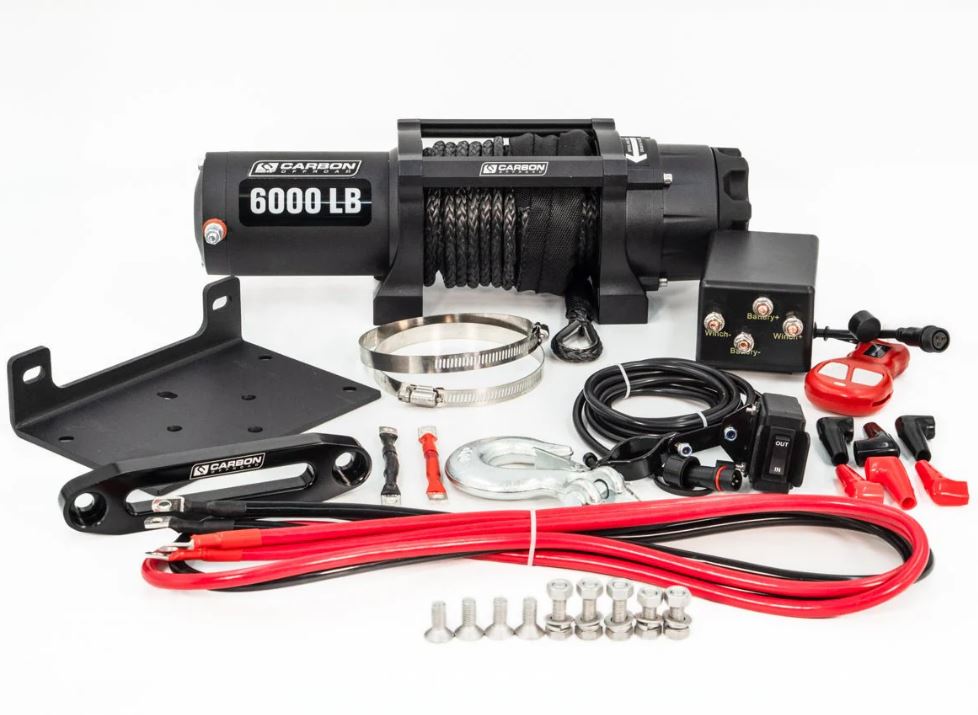

  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg

INSTALLATION AVAILABLE, FEEL FREE TO CALL US ON 03 5918 4537 TO GET A QUOTE OR BOOK A TIME.



12V DC PERFORMANCE SPECS (first layer of drum)

Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current @12V
0 (0)  20.5 (6.2) 30 Amps
1000 (454) 16.1 (4.9) 83 Amps
2000 (907) 12.8 (3.9) 136 Amps
3000 (1361) 10.7 (3.3) 268 Amps
4000 (1814) 8.6 (2.6) 232 Amps
6000 (2721) 4.9 (1.5) 320 Amps
