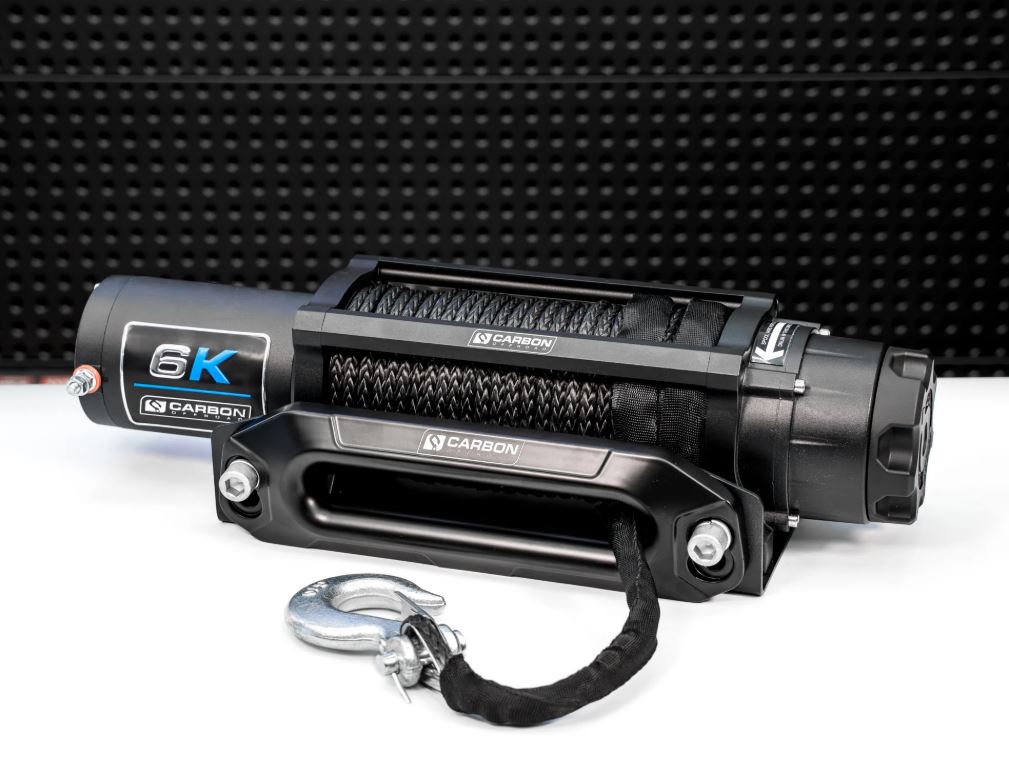

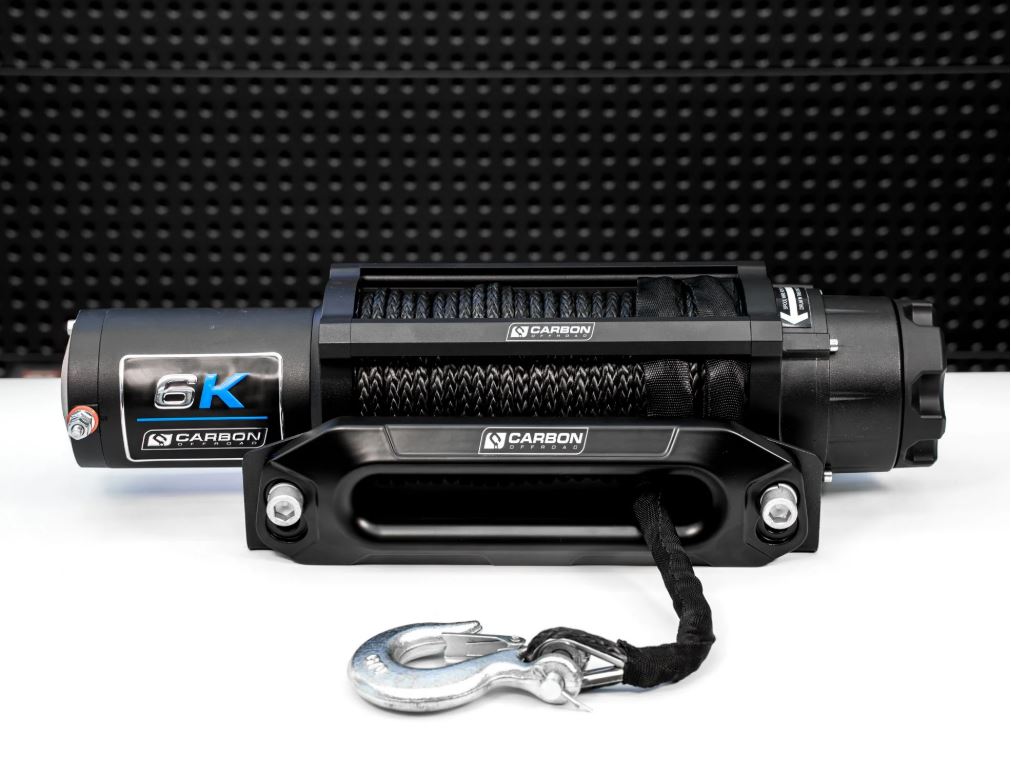

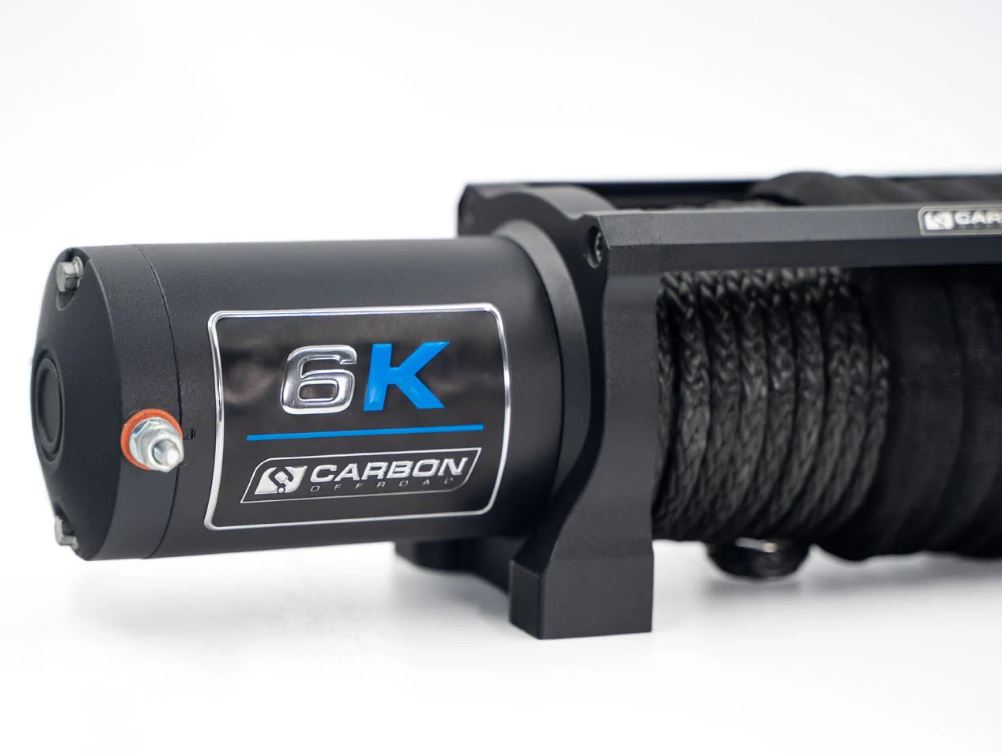

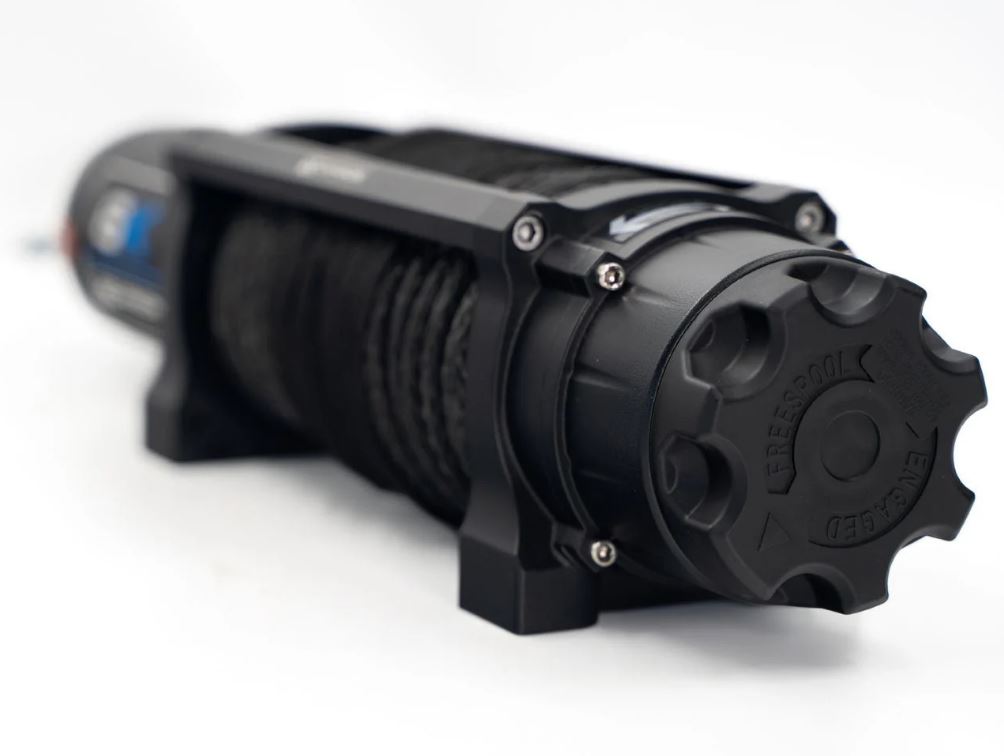

Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch
Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch
Regular price
$649.00 AUD
Regular price
Sale price
$649.00 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The ultimate pulling machine for your Suzuki Jimny/Sierra or SXS ATV.
The Carbon 6K long drum is a compact little weapon while keeping a decent rope capacity at 26M!
- Rated line pull: 6000 lbs, (2725kg) single-line
- Motor: 12V DC 2.5 HP permanent magnet
- Remote Control: Handlebar Mini-Rocker
- Wireless Remote Control: Included
- Gear train: 3-Stage Planetary
- Gear Ratio: 147:1
- Clutch: Roller disc full load automatic
- Brake: Automatic brake in the motor bracket
- Aluminium hawse
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- IP Rating: IP66 for winch and solenoid (excludes remote control and switch)
- Synthetic Rope: 26m x 6.5mm diameter
- Drum Diameter/Length: 51mm x 208mm
- Mounting Bolt Pattern: 254mm x 76mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 473 x 125 x 120mm
- Packing Dimensions (L x W x H): 530 x 170 x 230mm
- Winch weight with synthetic rope attached: 8.3kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 13.8(4.2) | 15 | 1/6000(2725) |
| 2000(1814) | 9.5(2.9) | 125 | 2/5350(2430) |
| 4000(3629) | 7.2(2.2) | 190 | 3/4780(2170) |
| 6000(5443) | 4.6(1.4) | 240 | 4/4270(1940) |
