The Highmount Guy

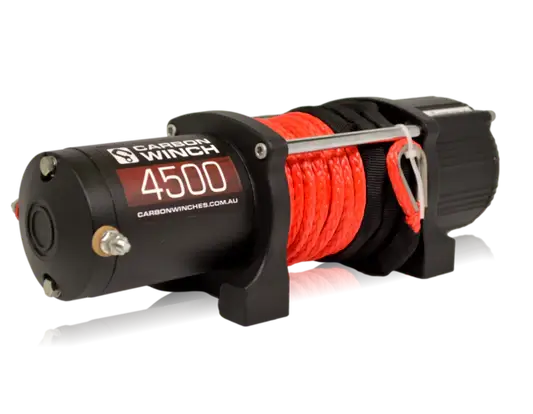

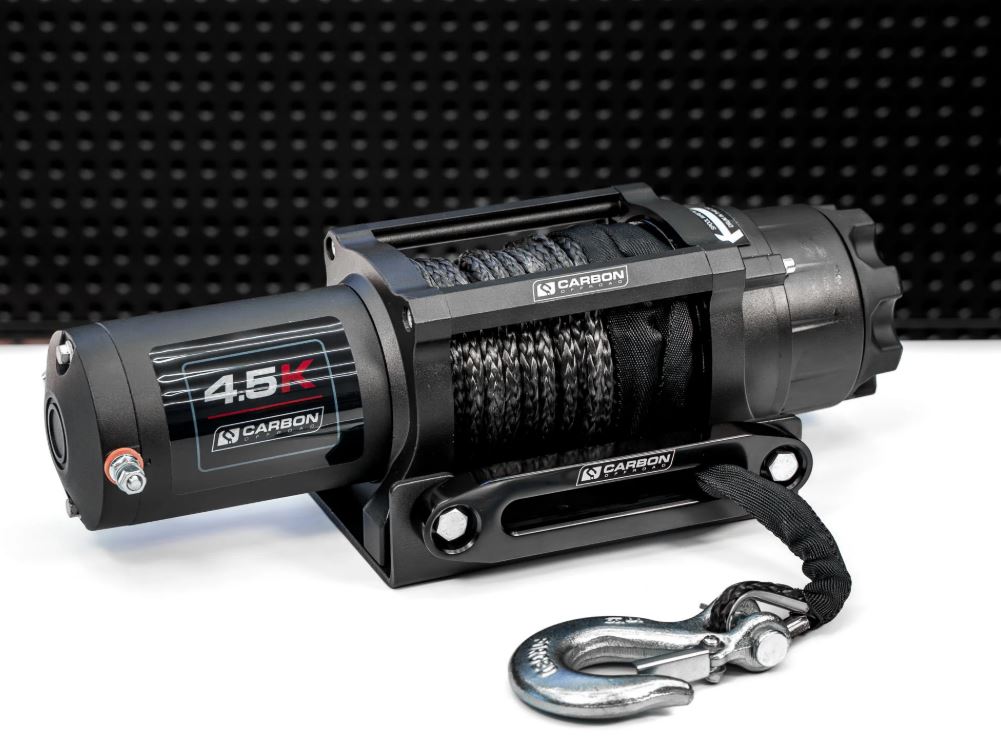

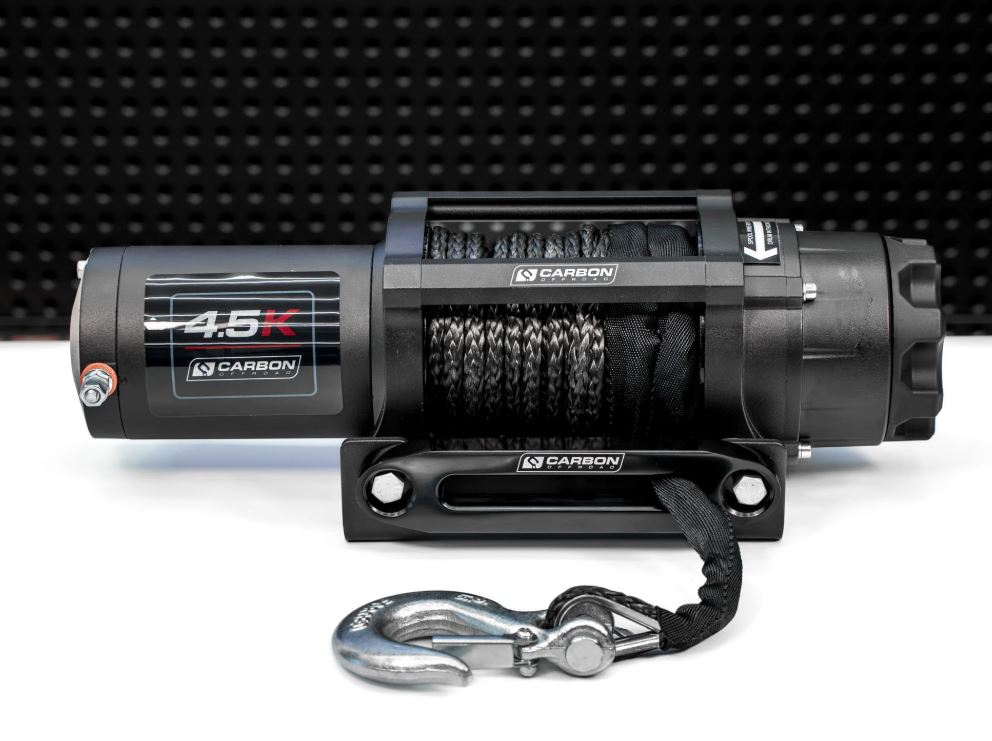

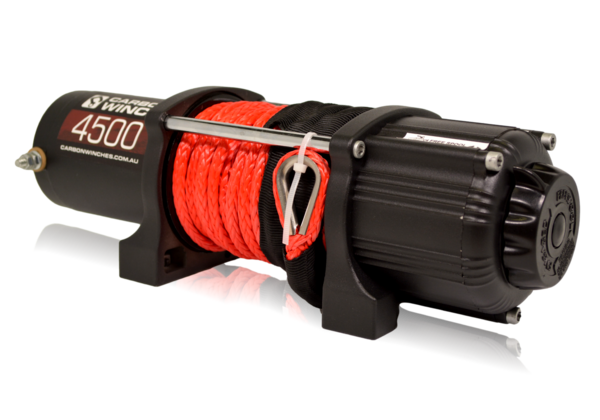

Carbon Winch 4500lb ATV Trailer with Synthetic Rope and Wireless Control - Fully Sealed.

Carbon Winch 4500lb ATV Trailer with Synthetic Rope and Wireless Control - Fully Sealed.

Regular price $475.00 AUD
Regular price Sale price $475.00 AUD
Sale Sold out
Shipping calculated at checkout.

The Carbon Offroad 4,500 lb Capacity ATV/UTV winch for big ATV, UTV and sides x sides, and car trailers. This winch has been upgraded and all stock from September 2021 onward have been re-designed to include better clutch handle operation, seals allowing use in wet conditions, better quality finish and components all for the same price.



A small compact winch with integrated mounting plate makes mounting this winch as simple as it can get to an existing pedestal on a trailer, or into a winch location on an ATV or Buggy.

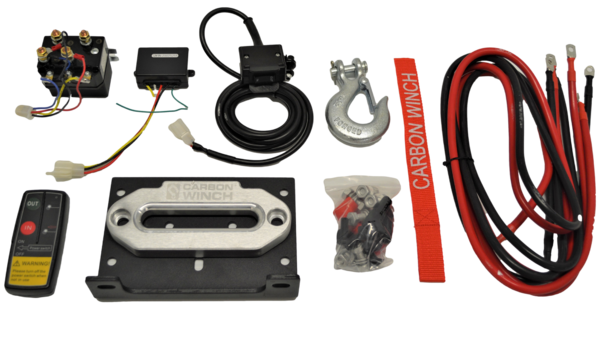

With wireless remote control included free and a handlebar rocker switch control option, it's a very versatile winch setup.



Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinnys and open cattle gates on Livestock Truck Trailers.



A great small all rounder winch to make work easier or to get your buggy out of the bog.





FEATURES

4,500 lb (2,040 kg ) line pull

Power in and power out

Winch drum centred avoids the interference of rope and provides streamlined appearance.

Mechanical load holding and dynamic brake for 100% braking.

High efficiency, low amp draw and sealed permanent magnet motor

Full metal 3 stage planetary gear train for greater pulling force

Sliding pin and ring gear clutch for rapid wire rope payout

Synthetic rope



SPECIFICATION / PART NUMBERS  CW-45



Part number: CW-4.5

Rated line pull: 4,500 lbs, (2040kg) single-line

Motor: 12V DC 1.9HP motor

Remote Control: Handlebar Mini-Rocker

Wireless Remote Control: included

Geartrain: 3-Stage Planetary.

Gear Ratio: 176:1

Clutch (freespooling): Split Ring Gear

Brake: Dynamic and mechanical braking

Drum Diameter/Length: 2.5’’/4.4’’ (60.5mm/112mm)

Synthetic Rope: 43’, 1/4’’ diameter ( 13m, 6.35 diameter)

Fairlead: Aluminium Hawse

Mounting Bolt Pattern: 3.0’’ x 6.59’’ ( 76mm x 167mm )

Winch Dimensions ( L x W x H ): 14.9'' x 4.7'' x 4.5'' (379x 120 x 115mm )

Packing Dimensions( L x W x H ): 19.7x 10.6'' x 6.3'' ( 500 x 270 x 160mm )

Shipping Weight: 12.2kg





12V DC PERFORMANCE SPECS (first layer of drum)



Line Pull

Lbs.(Kgs.)

Line Speed

FT./min(M/min.)

Motor
Current
Pull by layer
layer/Lbs(Kgs.)
20.4(6.2) 31 Amps 1/4500(2040)
1000 14.2(4.3) 65Amps 2/3750(1700)
2000 10.9(3.3) 96Amps 3/3510(1595)
3000 7.7(2.4) 125Amps 4/3300(1500)
4500 4.9(1.5) 175.Amps
