Carbon 3.0k 3000lb Utility Trailer ATV Quad Bike Electric Winch

Carbon 3.0k 3000lb Utility Trailer ATV Quad Bike Electric Winch

Regular price $249.95 AUD
Regular price Sale price $249.95 AUD
Sale Sold out
Shipping calculated at checkout.

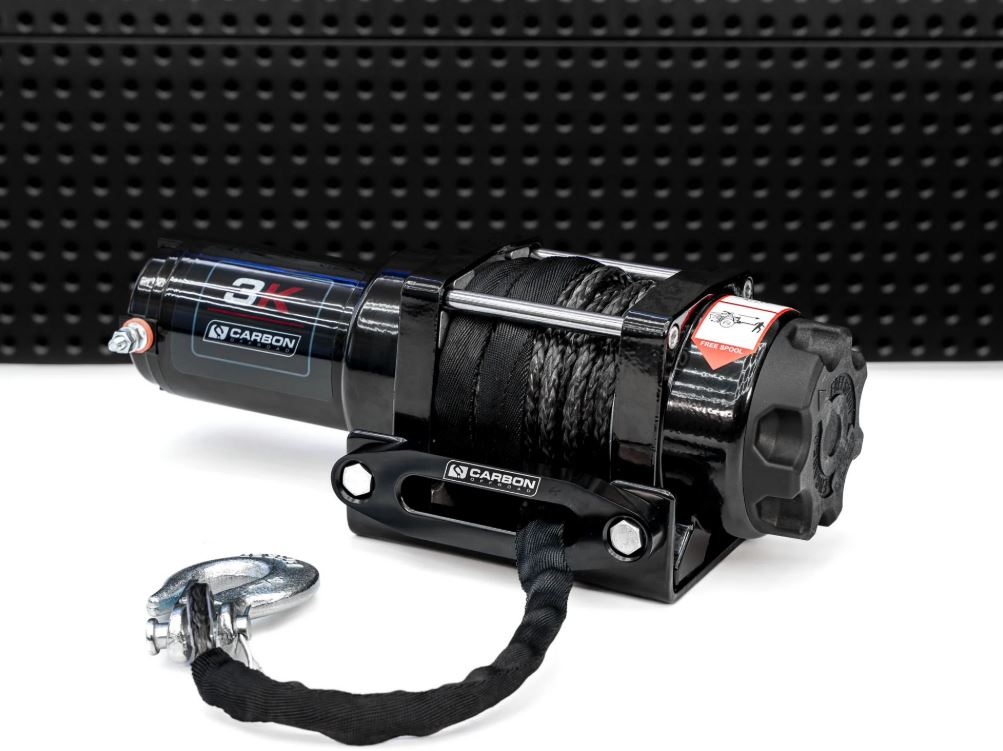

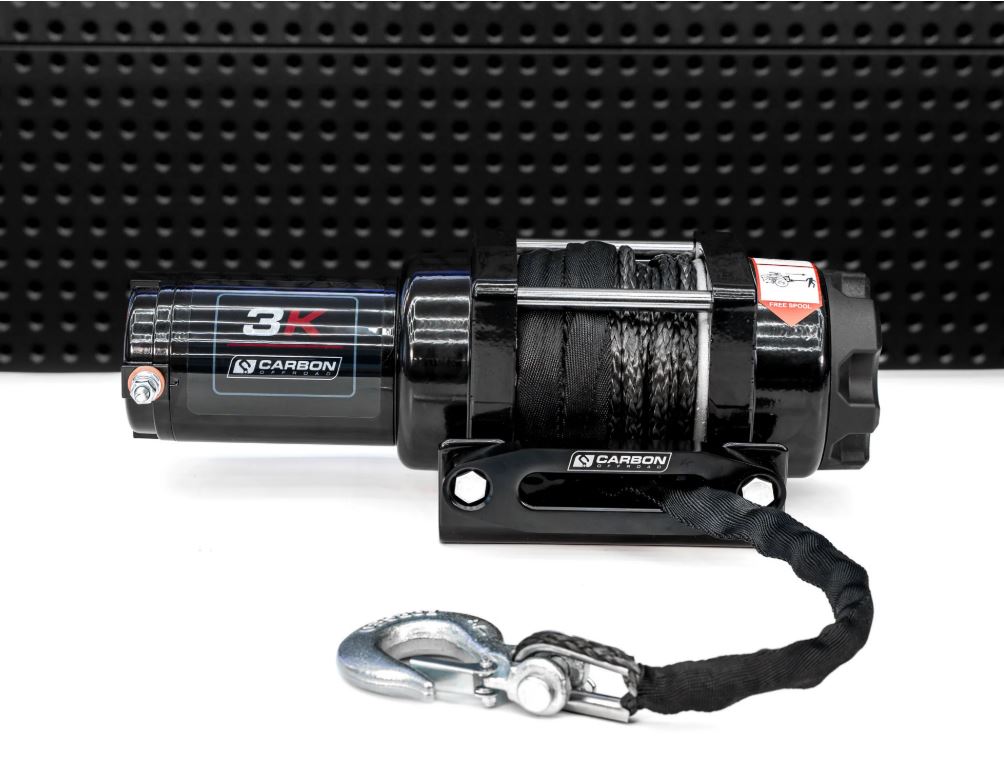

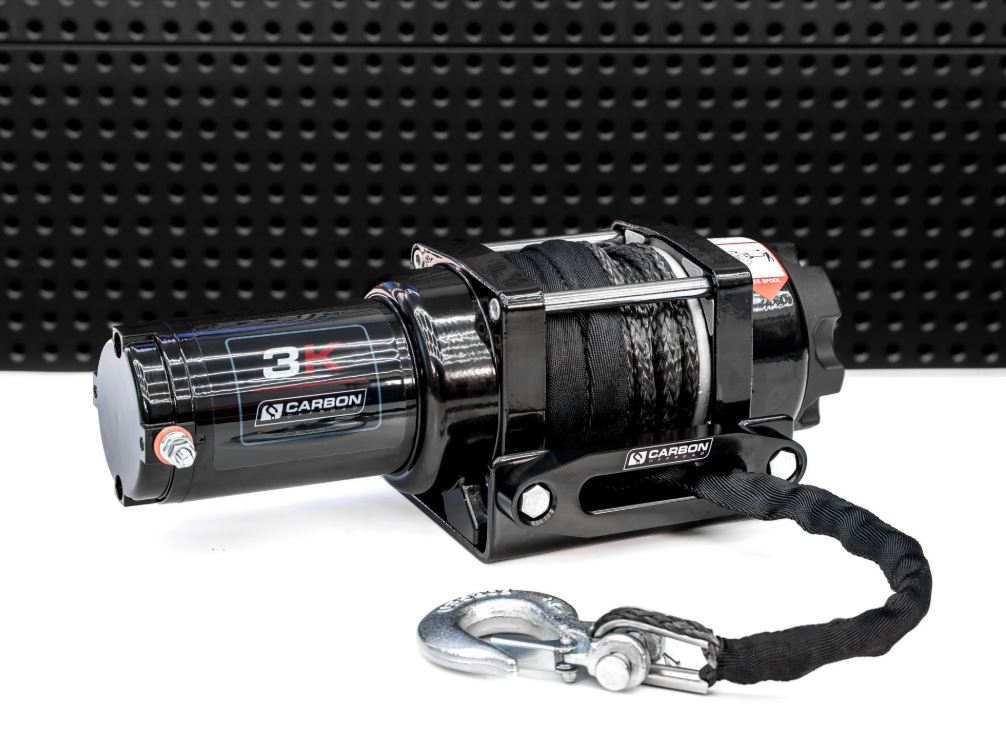

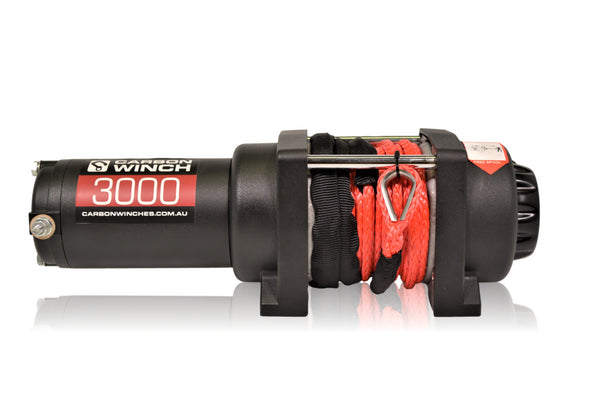

The Carbon CW-3U 3000lb Light-Duty Trailer and Utility Winch

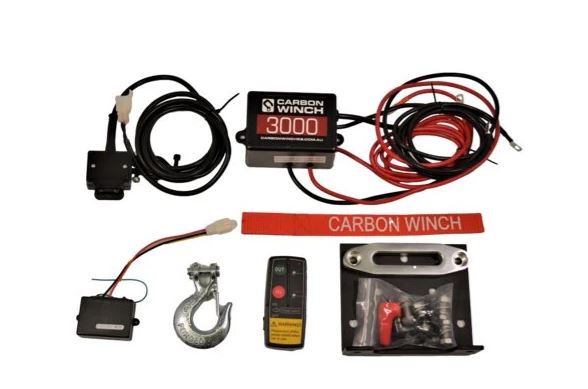

The Carbon CW-3U 3.0K 3000lb winch may be a small winch, but it's one big value when you conside the reliability and the overall quality. Built to handle lighter loads ( to 3,000lb). This winch is overflowing with upgraded features, including a hand remote and wireless remote control to control power in/power-out functions and tie rods for added stability.



SPECIFICATION / PART NUMBERS  CW-3U 3000lb



Part number: CW-3U

Rated line pull:  3000lbs, (1360kg) single-line

Motor: 12V DC 1.5HP Permanent Magnet motor

Remote Control: Remote Switch, 12� (3.7m) lead.

Wireless Remote Control: Included

Geartrain: Single Stage Planetary.

Gear Ratio: 153:1

Clutch (freespooling): Split Ring Gear

Brake: Self-locking gear train ( Rated Load Holding

Drum Diameter/Length: 1.26��/2.87�� (32mm/73mm)

Synthetic  Rope: 43�, 3/16�� diameter ( 13m, 4.8 diameter)

Fairlead: Roller

Mounting Bolt Pattern: 3.0�� x 4.87�� ( 76mm x 124mm )

Winch Dimensions ( L x W x H ): 12.2'' x 5.0'' x 5.0'' (310127 x 127mm )

Packing Dimensions( L x W x H ): 15.7��7.9'' x 8.7'' ( 400 x 200 x 220mm )

Shipping Weight: 10kg ( 22lbs)

Warranty : 1 year

INSTALLATION AVAILABLE, FEEL FREE TO CALL US ON 03 5918 4537 TO GET A QUOTE OR BOOK A TIME.





12V DC PERFORMANCE SPECS (first layer of drum)

Line Pull
Lbs.(Kgs.)

Line Speed
FT./min(M/min.)

Motor
Current

Pull by layer
layer/Lbs(Kgs.)

0

20.4(6.2)

10Amps

1/3000(1360)

1000(453)

14.2(4.3)

65Amps

3/2725(1235)

2000(907)

10.9(3.3)

96Amps

3/2480(1125)

3000(1360)

7.7(2.4)
