ALTERNATOR 12V 140A SUITS VZ V8 LS2
ALTERNATOR 12V 140A SUITS VZ V8 LS2
Couldn't load pickup availability

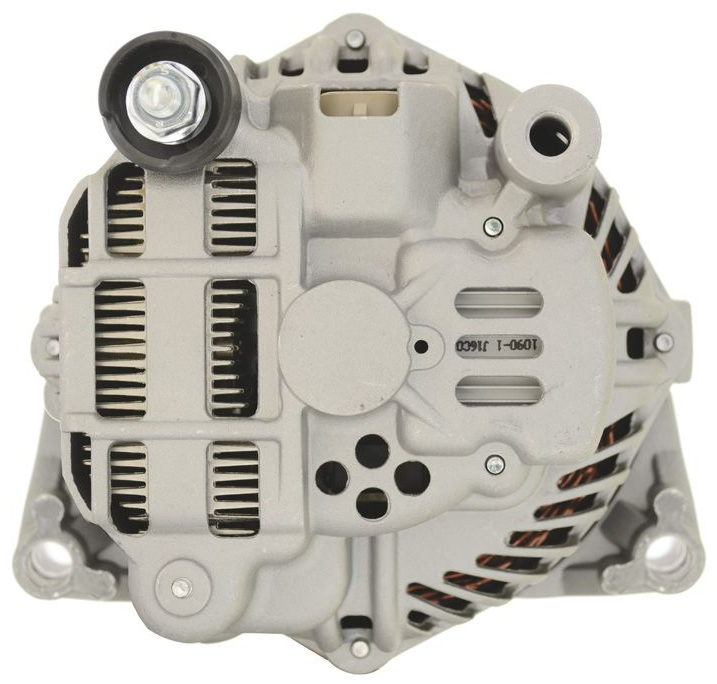

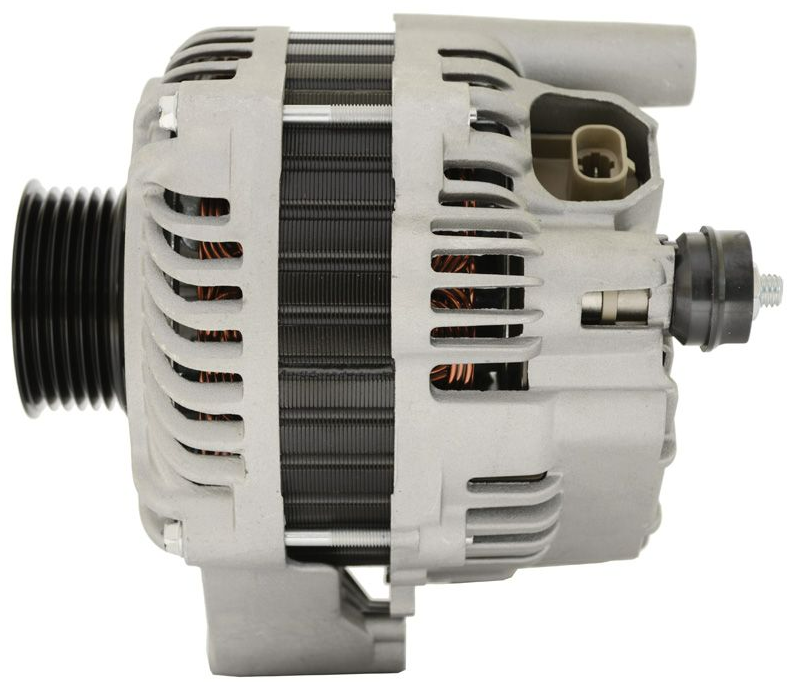

This 12V 140A alternator is designed to suit compatible Holden Commodore VZ models fitted with the LS2 V8 engine.
With a rated output of 140 amps, this alternator provides charging capacity for the vehicle's electrical system and accessories. It is suited to replacement applications where the original alternator's mounting configuration, pulley arrangement and electrical connector match.
Key Features
-
12V electrical system
-
140A rated output
-
Suits Holden Commodore VZ V8 LS2 applications
-

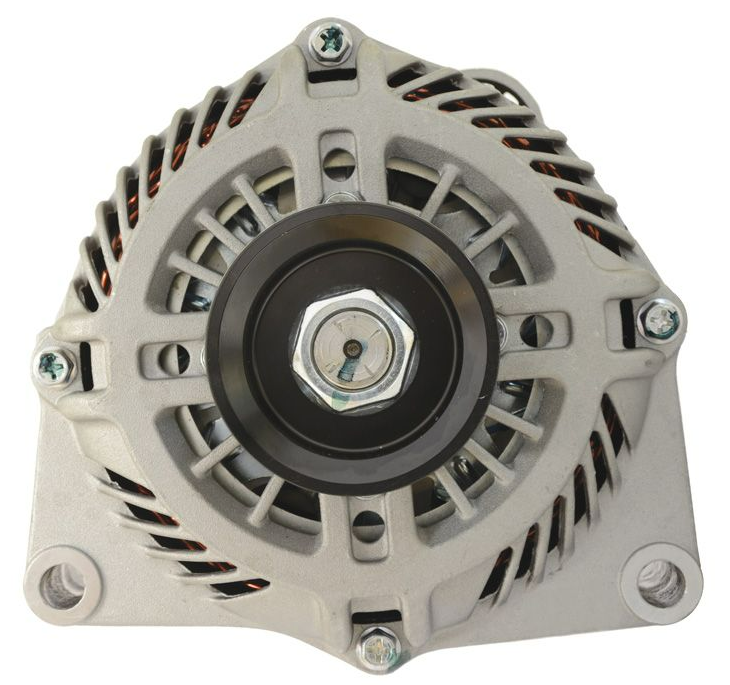

Six-groove multi-rib pulley
-

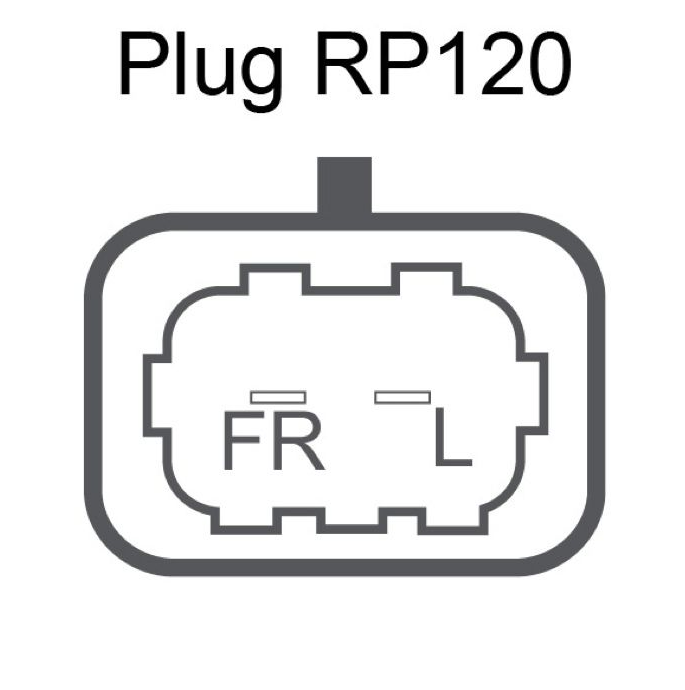

RP120 electrical plug
-
Designed for compatible original mounting arrangements
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 12V |
| Rated output | 140A |
| Adjuster hole thread | M8 × 1.25 |
| Pivot hole diameter | 10mm |
| Adjuster-to-pivot hole measurement | 140mm |
| Pivot length | 51mm |
| Pulley diameter | 55mm |
| Pulley grooves | 6PV |
| Electrical plug | RP120 |
| Vehicle application | Holden Commodore VZ |
| Engine | LS2 V8 |
Fitment Notes
Please confirm your vehicle's engine variant, alternator mounting dimensions, pulley configuration and electrical connector before ordering to ensure compatibility.
