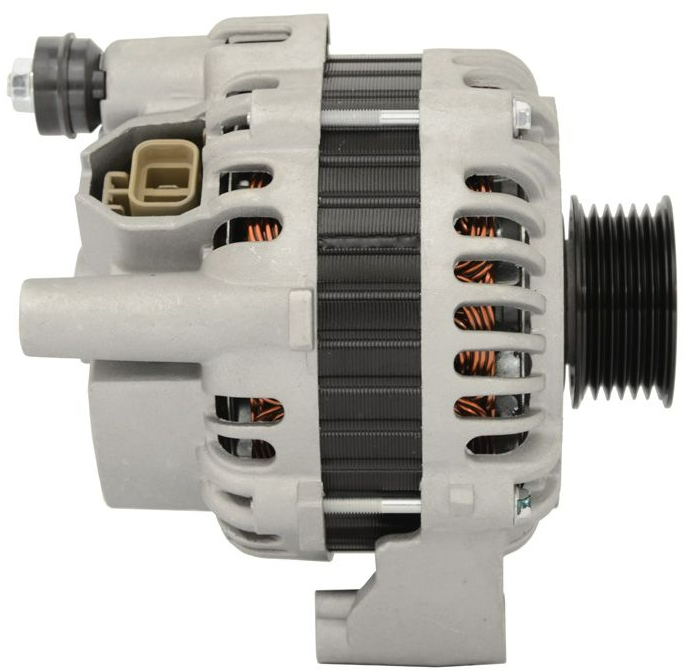

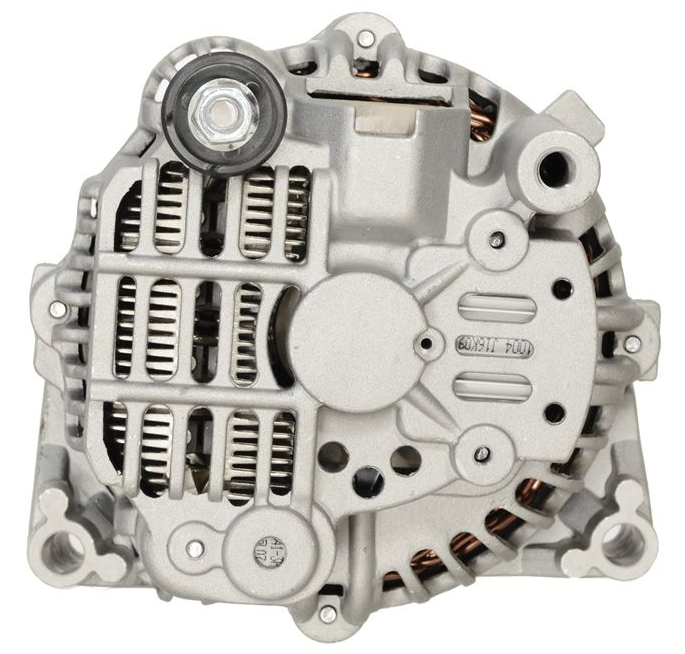

Alternator 12V 140A Suits VT-VZ V8 LS1 GEN 3
Alternator 12V 140A Suits VT-VZ V8 LS1 GEN 3
Couldn't load pickup availability
This 12V 140A alternator is designed to suit Holden VT–VZ V8 models fitted with the LS1 Gen III engine.
With a rated output of 140 amps, this alternator provides charging capacity for the vehicle's electrical system and accessories. It is suitable as a replacement alternator where the specified mounting dimensions, pulley configuration and electrical plug match the original installation.
Key Features
-
12V electrical system
-
140A rated output
-
Suits Holden VT–VZ V8 LS1 Gen III applications
-

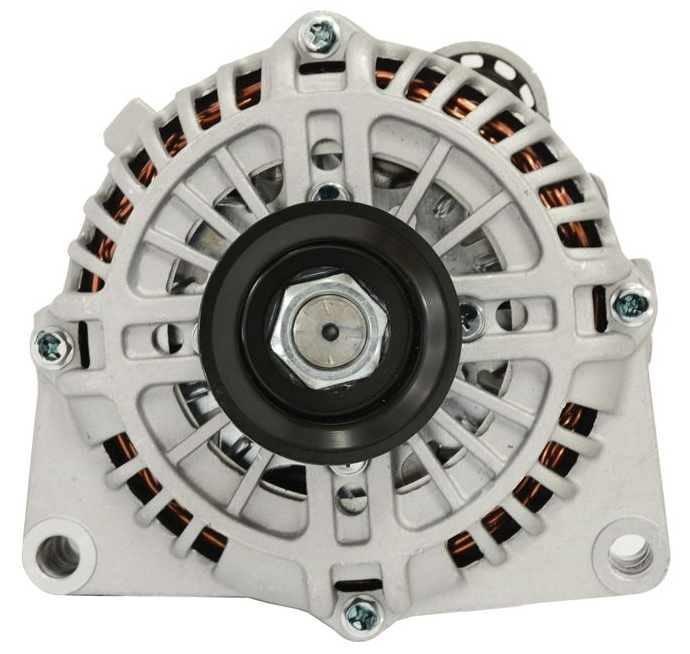

Six-groove multi-rib pulley
-

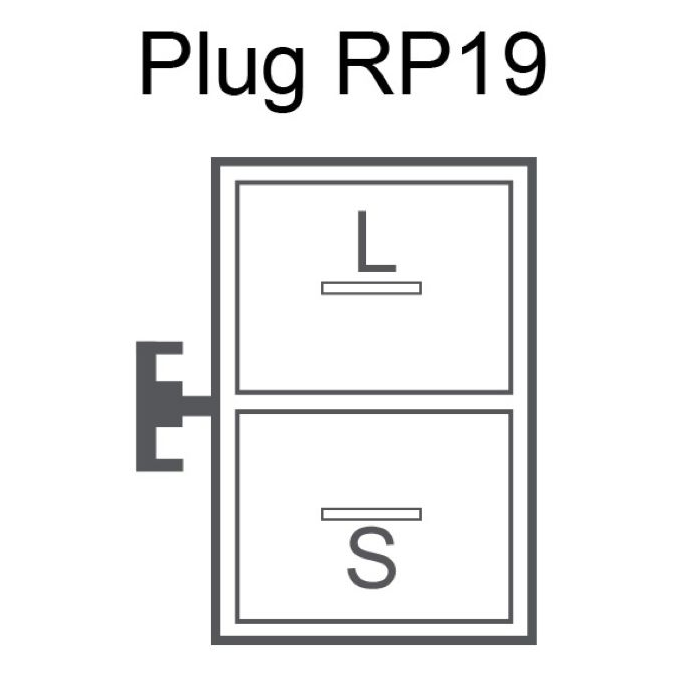

RP19 electrical plug
-
Designed for compatible original mounting arrangements
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 12V |
| Rated output | 140A |
| Adjuster hole diameter | 10mm |
| Pivot hole diameter | 10mm |
| Adjuster-to-pivot hole measurement | 139mm |
| Pivot length | 50mm |
| Pulley diameter | 61mm |
| Pulley grooves | 6PK / 6-rib |
| Electrical plug | RP19 |
| Vehicle application | Holden VT–VZ V8 LS1 Gen III |
Fitment Notes
Please verify your existing alternator's mounting dimensions, pulley arrangement and electrical connector before ordering, as specifications can vary between vehicle configurations.
Application: Holden VT–VZ V8 LS1 Gen III.
