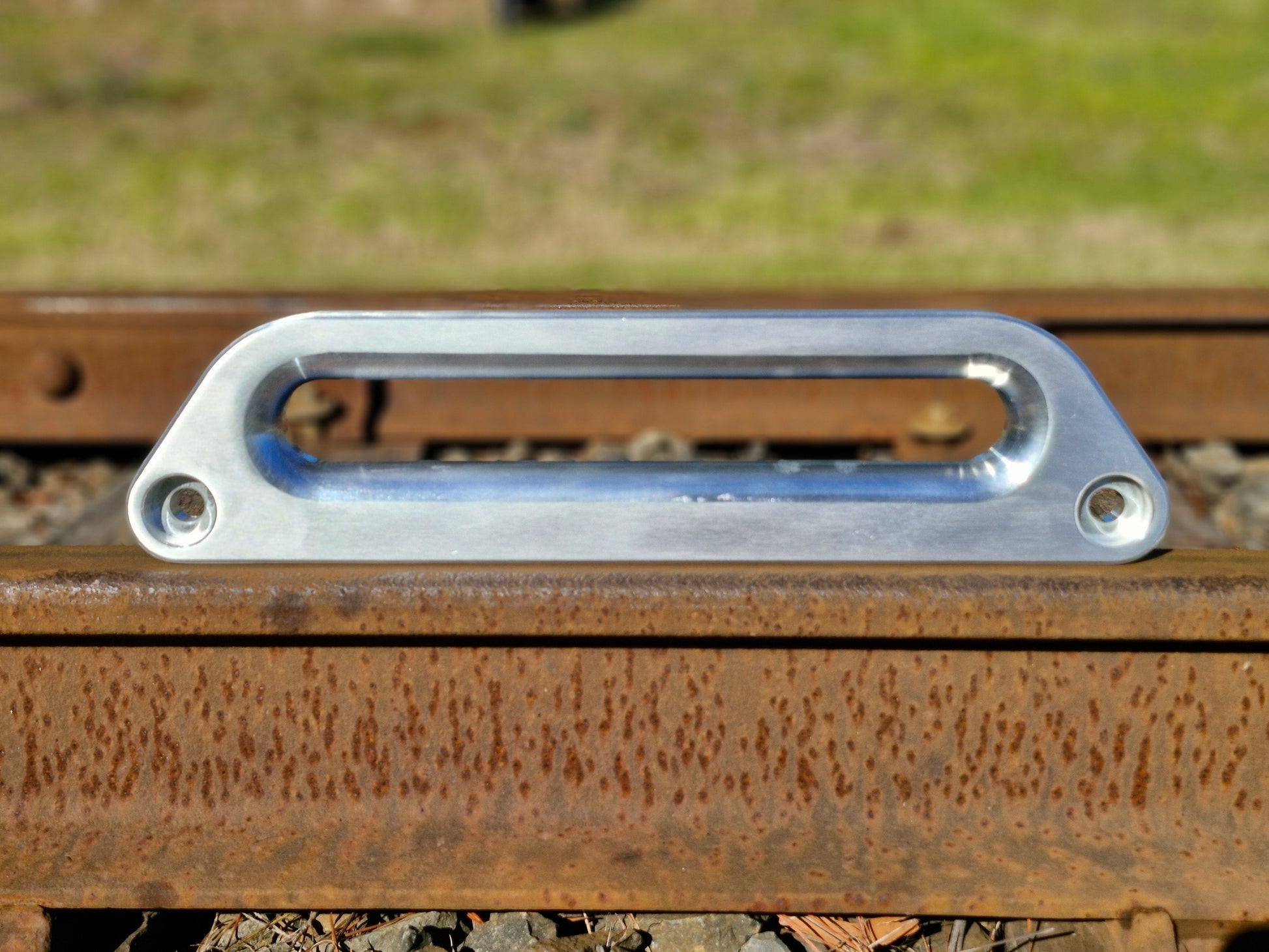

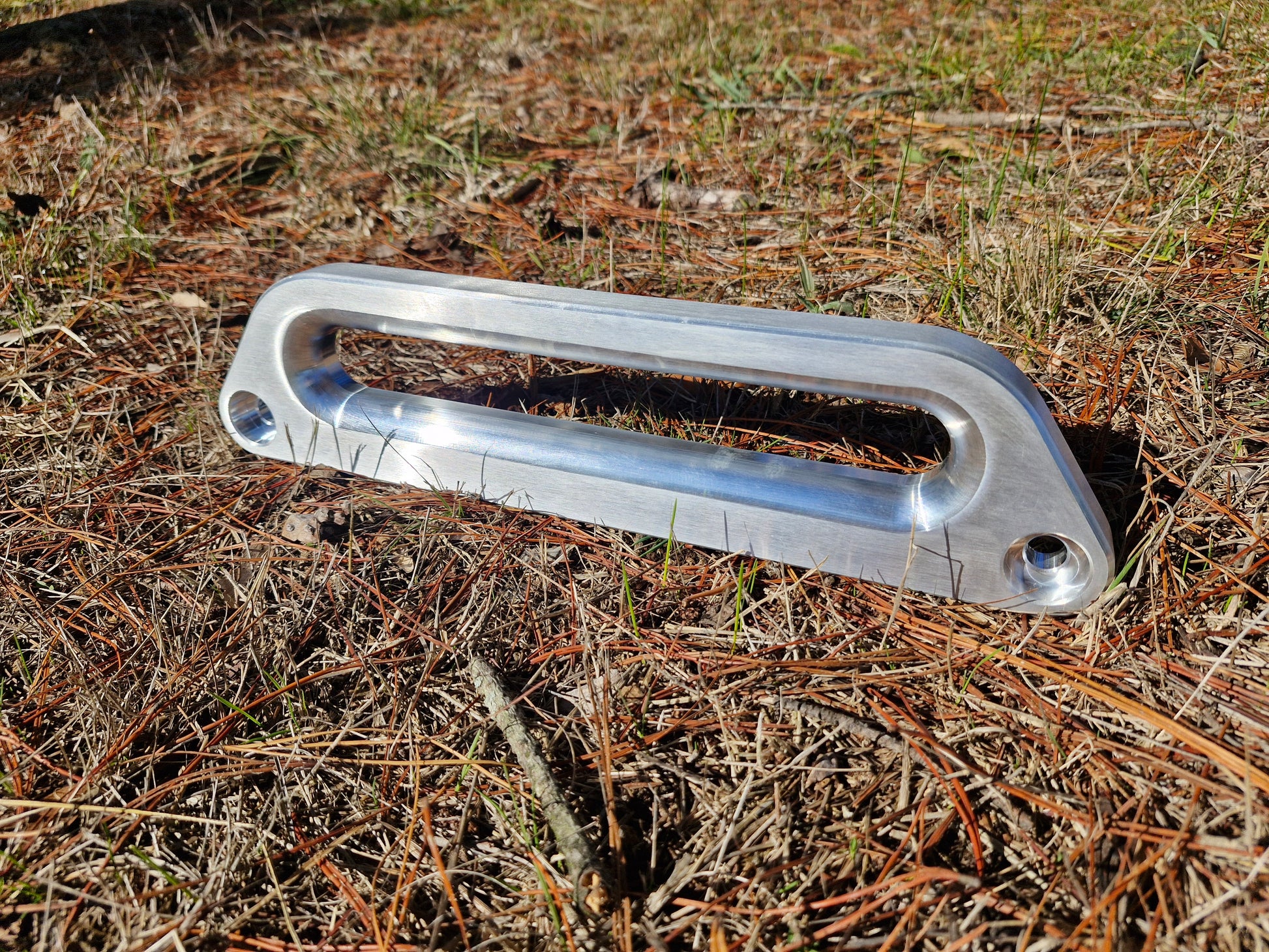

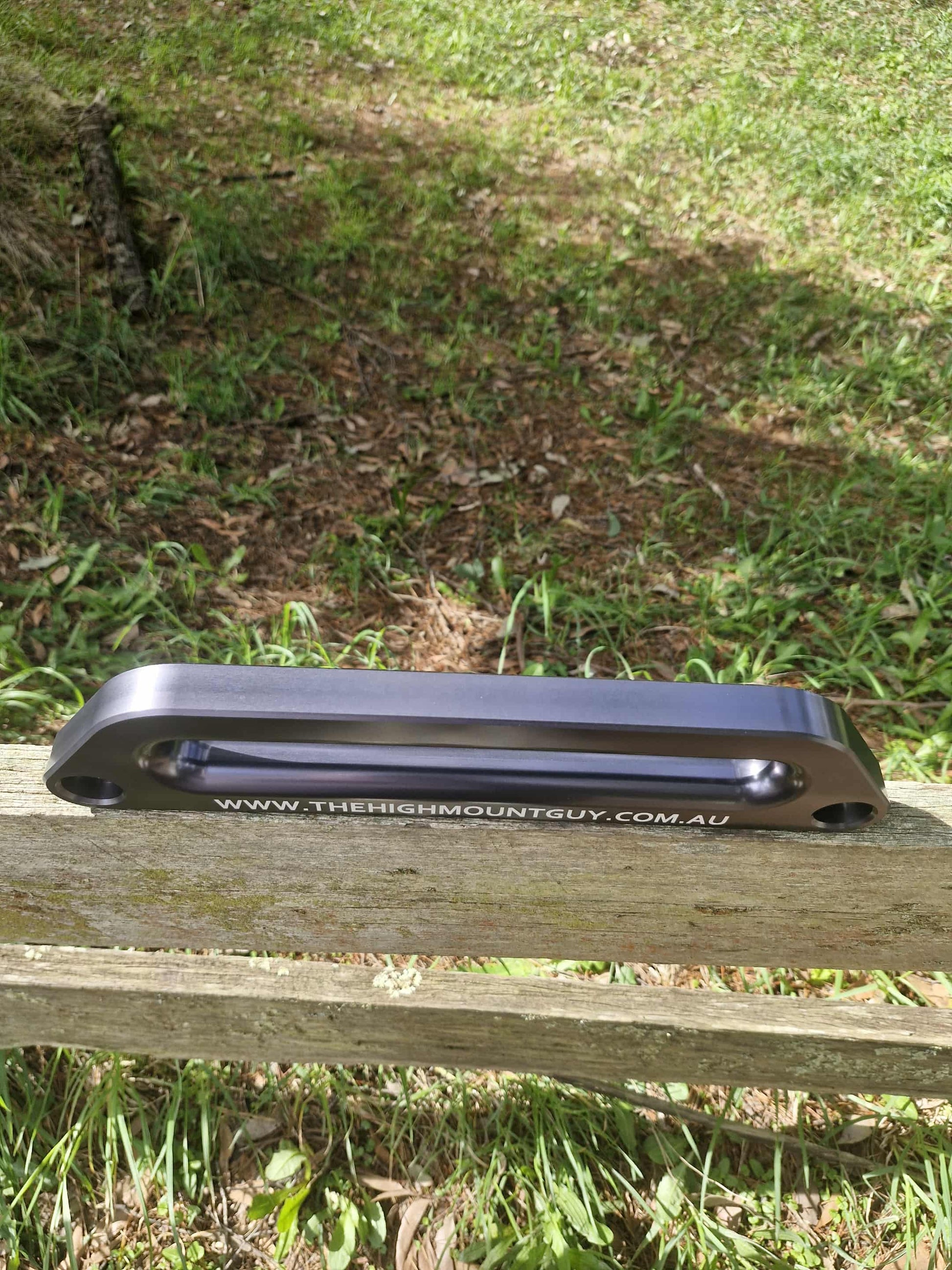

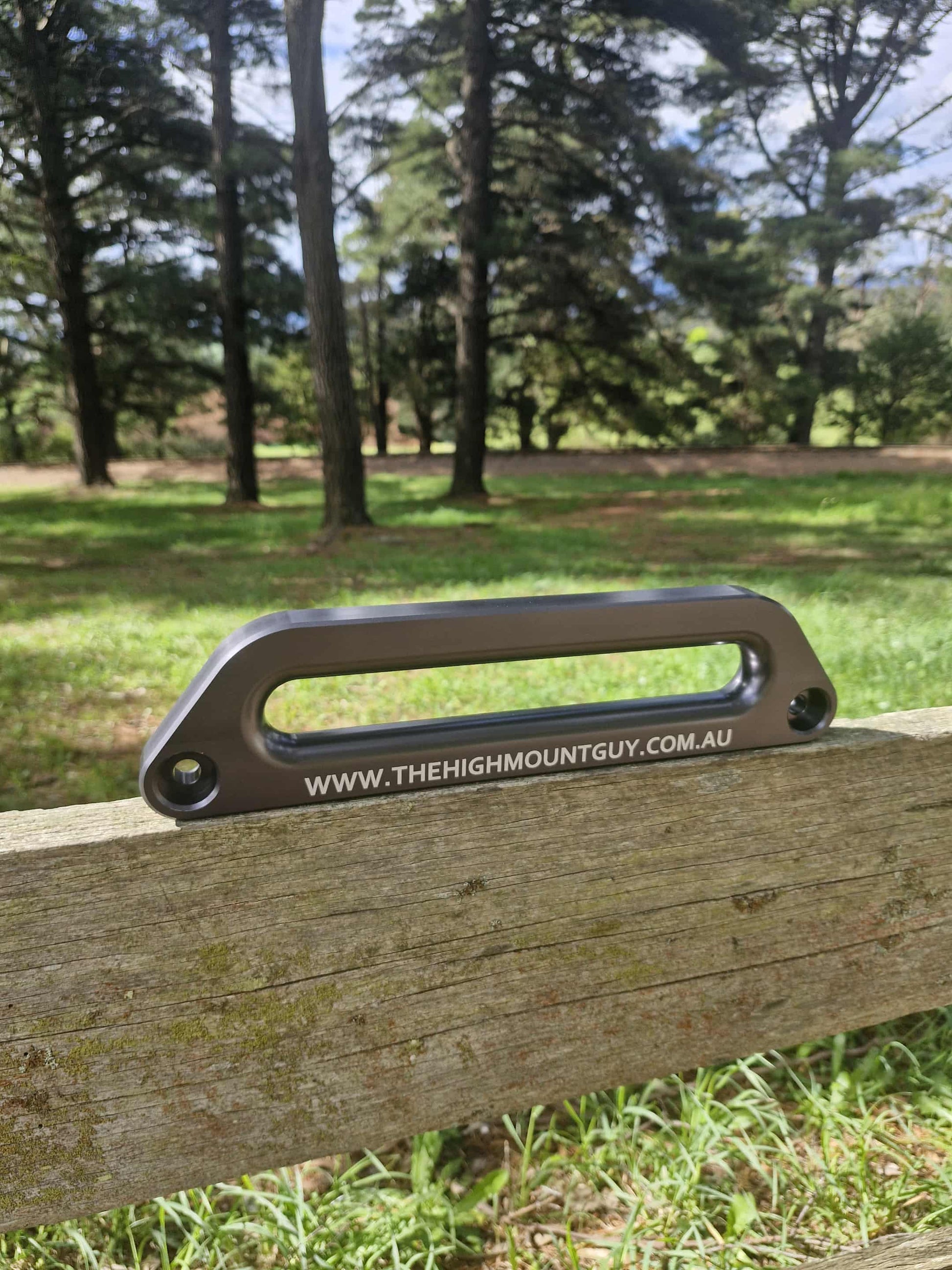

+76mm Extended Billet Alloy Offset Fairlead

Designed for serious off-roaders and competition winch setups, our +76mm Billet Alloy Offset Fairlead is engineered to maximise rope performance while giving your winch a premium finish.

Precision machined from 6061 billet aluminium, this fairlead features a large chamfered rope opening to minimise friction and reduce wear on synthetic winch rope. Finished in our signature charcoal grey anodising, it delivers outstanding durability, corrosion resistance, and a sleek appearance.

Designed specifically for winches fitted with a +76mm extended drum.

Features & Benefits:

• Precision machined from 6061 billet aluminium
• Offset design for +76mm extended drum winches
• Large chamfered rope slot to reduce friction and rope wear
• Hard-wearing charcoal grey anodised finish
• Lightweight, corrosion-resistant construction
• Ideal for competition and heavy-duty off-road applications

Specifications:

• Mounting Hole Centres: 330mm
• Overall Length: 370mm
• Overall Height: 90mm
• Offset: 30mm (centre of mounting holes to centre of rope slot)
• Thickness: 23.5mm

Please Note: This fairlead is not compatible with standard drum winches. It is designed exclusively for winches fitted with a +76mm extended drum.
