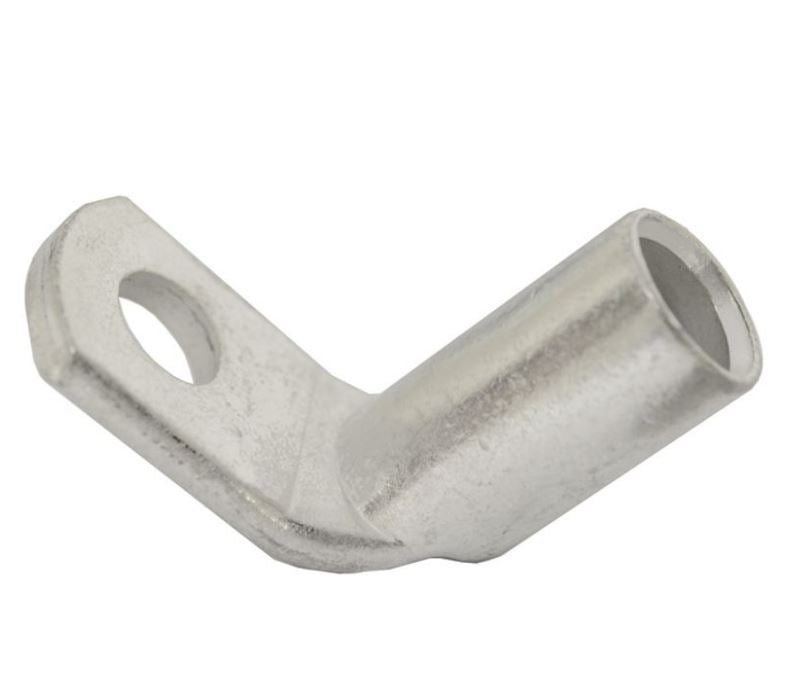

35mm2 CABLE LUG - 90º BEND

These 90° cable lugs are designed for electrical installations where a right-angle cable connection is required. Ideal for tight spaces and high-current applications, the 90-degree design helps route heavy-gauge cables neatly around winch systems, batteries and other electrical components.

Manufactured from high-purity electrolytic copper and tin-plated for corrosion resistance, these lugs feature annealed construction for excellent crimping properties and an internal chamfer for easier cable insertion.

Key Features

• 90° angled design for easier cable routing in confined spaces

• Suitable for flexible and stranded cables

• Manufactured from 99.95% pure electrolytic copper

• Annealed material for optimal crimping performance

• Tin-plated surface, 5–10 microns thick

• Internal chamfer for easy cable insertion

• Operating temperature: -55°C to 155°C

• Available with 8mm or 10mm stud holes

Available Options

Choose the required stud hole size to suit your application:

• 8mm stud hole

• 10mm stud hole

Ideal for high-current automotive electrical systems, 4WD accessories, winch installations and battery connections where a secure, neatly routed cable termination is required.
