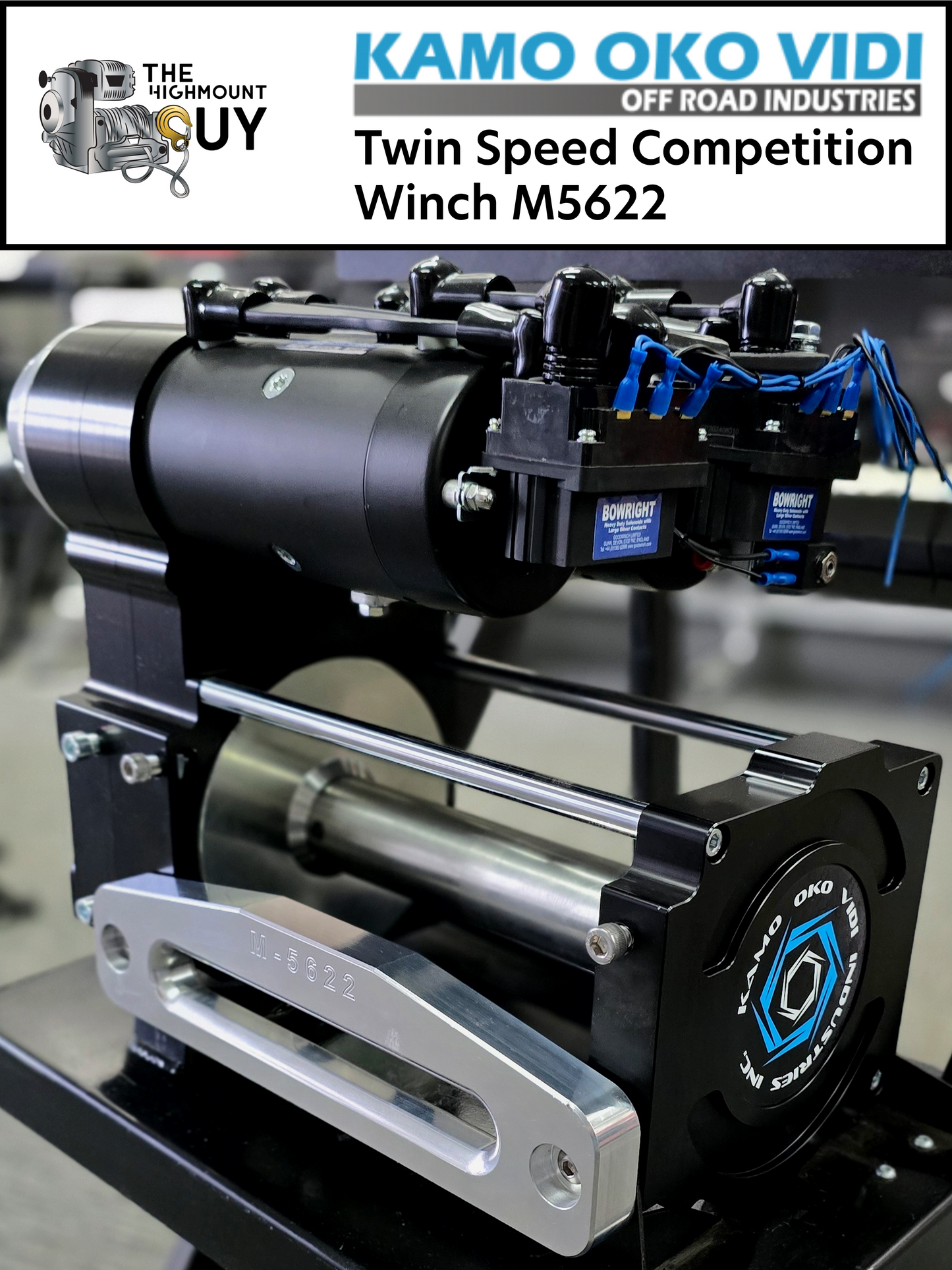

Kamo Oko Vidi Twin Motor Twin Speed Competition Winch M5622

Introducing the Kamo Oko Vidi Industries M5622

Twin Motor | Twin-Speed | Competition Winch

Engineered for elite off-road and competition use, the M5622 from Kamo Oko Vidi Industries sets a new benchmark in performance and innovation. Designed and manufactured in Croatia, this winch offers the power and reliability needed to conquer any terrain with confidence.

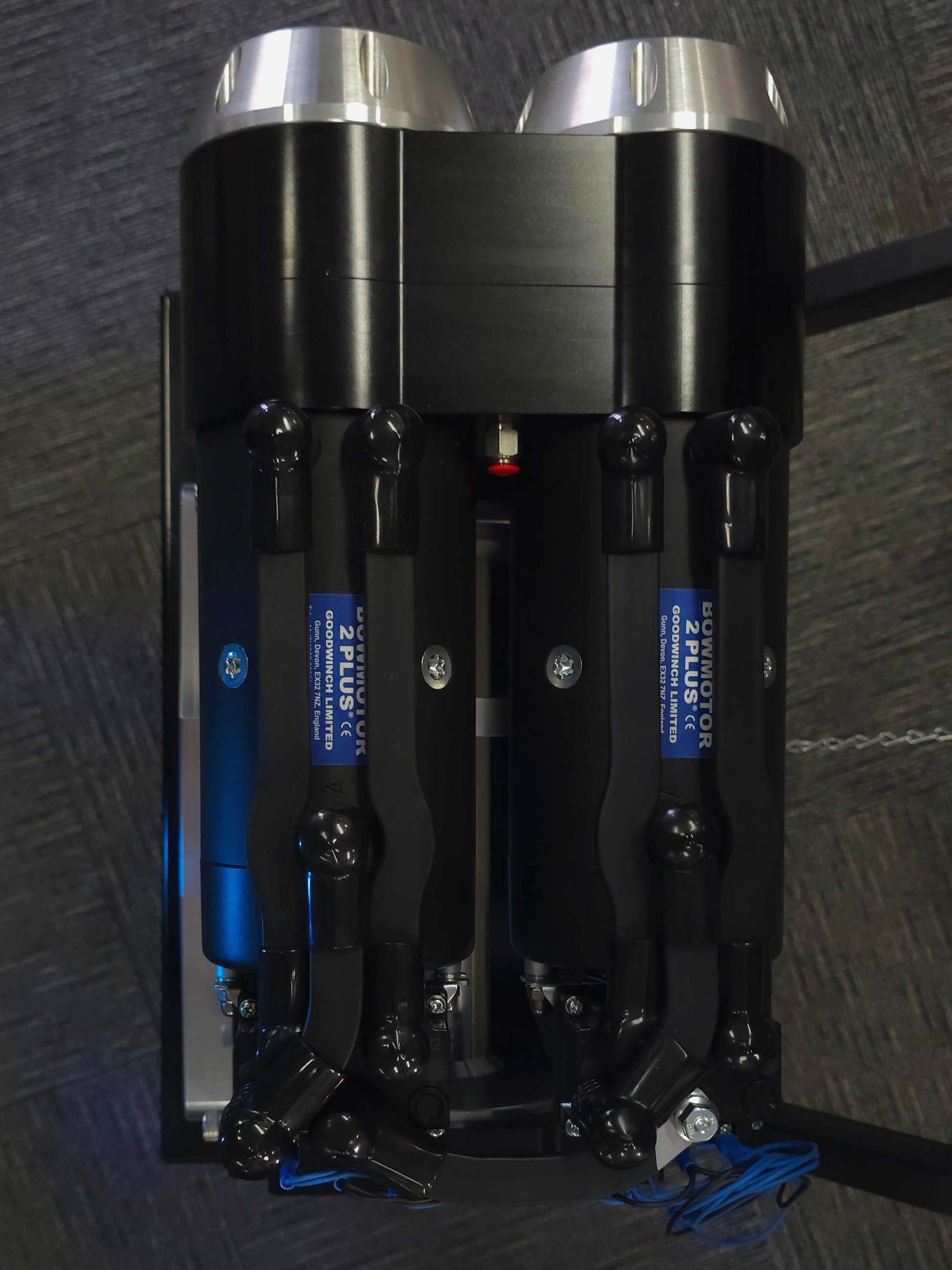

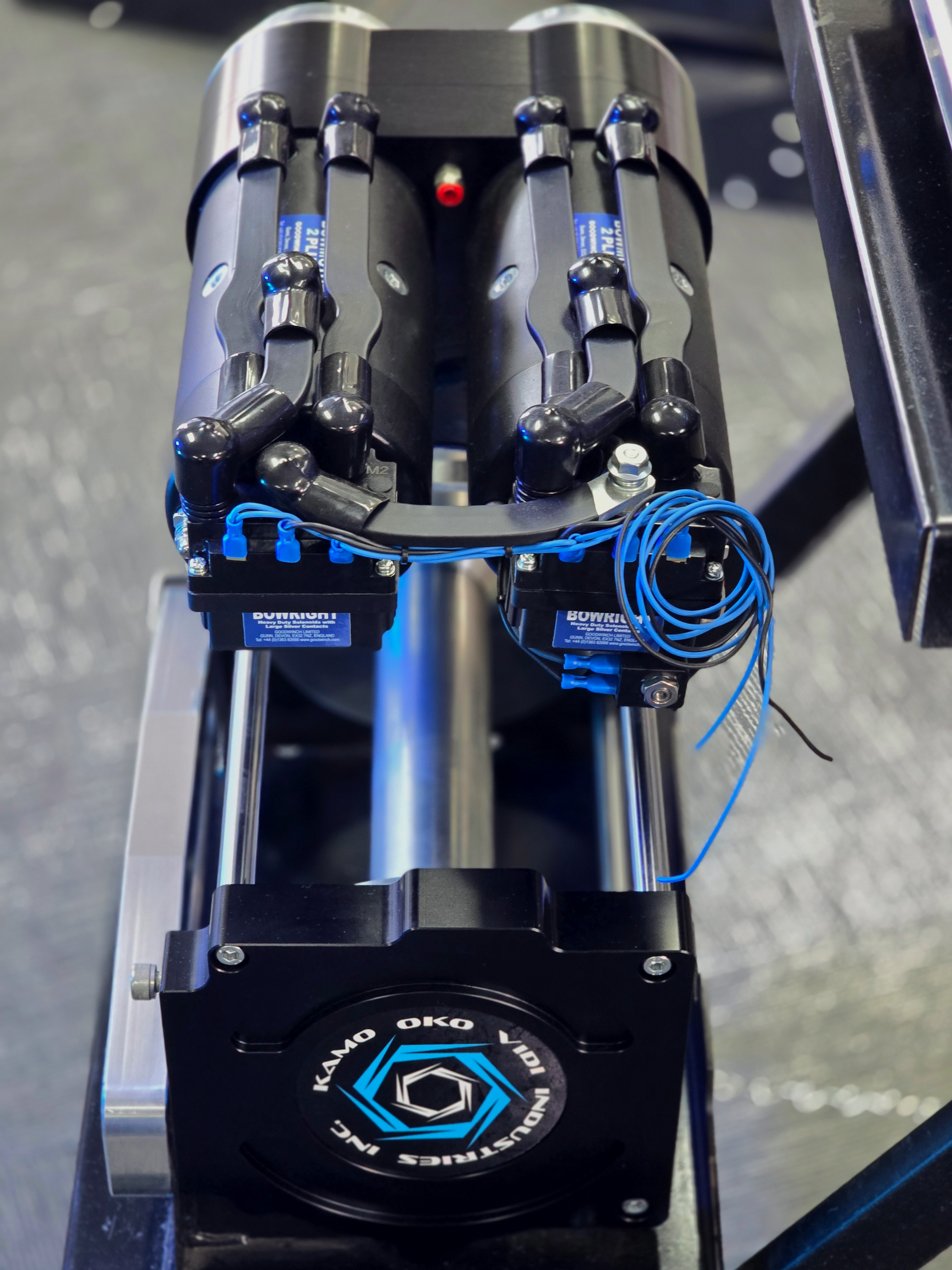

Equipped with twin Bow 2 PLUS motors and a twin-speed gearbox, the M5622 combines brute strength and speed in one complete, ready-to-install package.

⚙️ Unmatched Power & Speed

With a colossal 12,300 lb (approx. 4,200 kg) pulling capacity and dual gear ratios, the M5622 offers exceptional versatility:

• 1st Gear (133:1) – Optimized for control and torque, ideal for technical recoveries and delicate extractions. Approximately 17% faster than standard high-mount winches.

• 2nd Gear (56:1) – Prioritizes speed, offering up to 50% faster operation for fast-paced competition or recreational use.

Seamless gear transitions are activated via push-button controls. (Note: Gear changes must be performed when the winch is not under load.)

📊 Technical Specifications

Performance

• Pulling Capacity: 12,300 lbs (4,200 kg)

• Line Speeds:

  • 1st Gear: 8 m/min (single layer) to 23 m/min (six layers)

  • 2nd Gear: 19 m/min (single layer) to 55 m/min (six layers)

Motors & Electrical

• Motors: Twin Bow 2 PLUS 12V 8HP electric motors (6,000 RPM)

• Solenoid: Bowright 12V

• Power Distribution: Integrated busbar system

• Cables: 2 x 2m 95mm² power and earth cables

Air-Operated Features

• Freespool: +76mm air-actuated for effortless rope deployment

• Brakes: Air-operated system eliminates run-on for rapid, precise stops

• Gear Selection: 2-speed shifting at the flick of a switch (non-load conditions only)

📐 Dimensions & Weight

• Mounting System: 6-bolt configuration (4 bolts on the main housing, 2 on end support)

• Mounting Footprint: 330mm x 100mm (+60mm for outer gearbox bolts)

• Overall Dimensions:

  • Height: 395mm

  • Width: 493mm (end support to air brake cover)

  • Depth: 255mm

• Weight:

  • Winch (dry): 65 kg

  • Shipping weight: 90 kg

🎁 Included Accessories

• Synthetic Rope: 50m x 11mm WolfLine or Whittam (11,500 kg breaking strain)

• Hook: 5.3T, 13mm sling hook with safety latch

• Switches:

  • Custom KOV 1st/2nd gear rocker switch

  • Air freespool rocker switch

• Air System:

  • 2 x 3-port electric air solenoids

  • 8m of 6mm airline

  • Breather kit

✅ Complete Competition-Ready Package

The M5622 is the only twin-motor, twin-speed competition winch on the market that comes fully equipped and ready to install—no add-ons or guesswork required.

🔧 Installation Available

Professional installation is available on request.
📞 Call us at (03) 5918 4537 for a quote or to schedule your installation.
📍 Visit the shop or give us a call to see the M5622 in person—built for champions, ready for anything.
